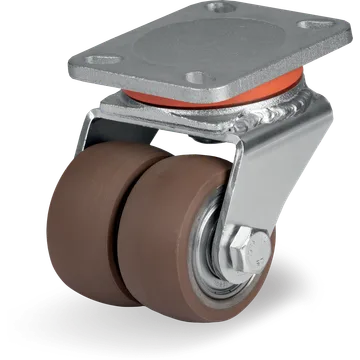

590105Series 59TR-PowerHigh polyurethane roller Ø80 mm
TR-PowerHigh polyurethane pallet truck rollers, steel centre, and compact castors
Load capacity: 500 daN
758301Representative image of the familyDrawing dimensions
- DDiameter
- 80 mm
- FWidth
- 70 mm
- HOverall height
- 130 mm
- A×BTop plate (outside)
- 135 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 55 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

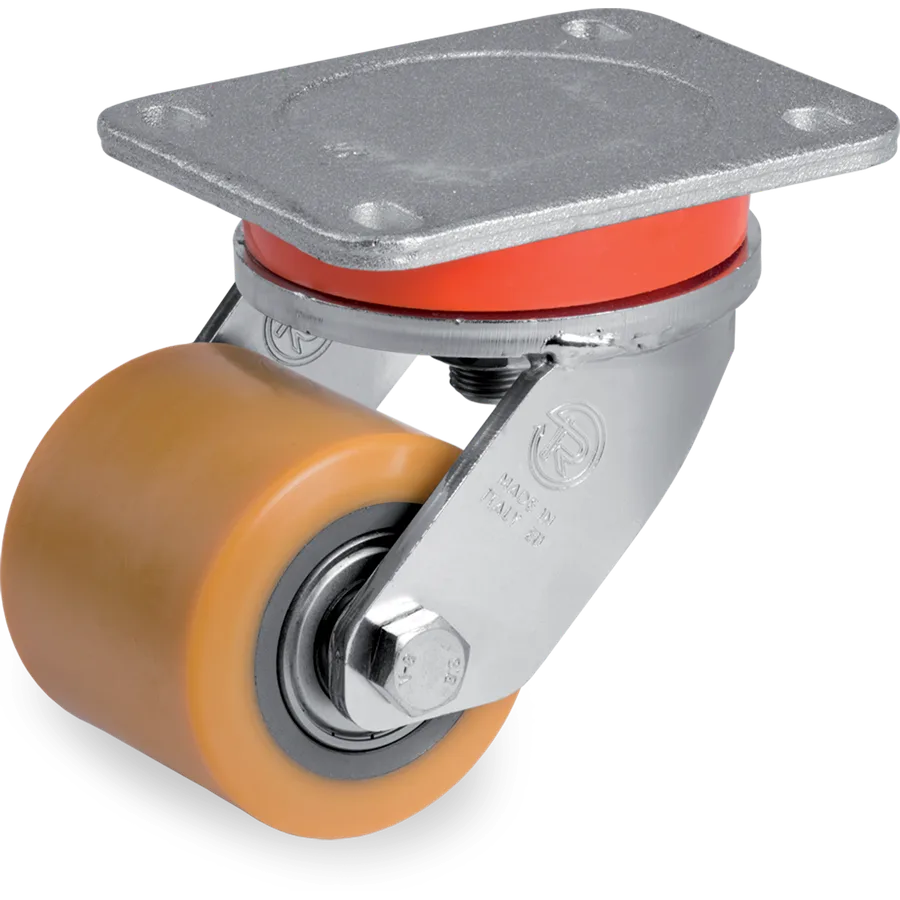

TR polyurethane roller Ø80×70 mm
TR polyurethane pallet truck rollers, steel centre
Tellure description: 75 80X70 CC SRP/EEMHD R2.1
- Diameter (D)
- Ø 80mm
- Width (F)
- 70mm
- Load at 4 km/h
- 560daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 758301
- Series
- Tellure Rôta 75
- Tread
- TR polyurethane
- Diameter (D)
- 80 mm
- Width (F)
- 70 mm
- Load at 4 km/h
- 560 daN
- Load at 6 km/h
- 375 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 130 mm
- Top plate (A × B)
- 135 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
