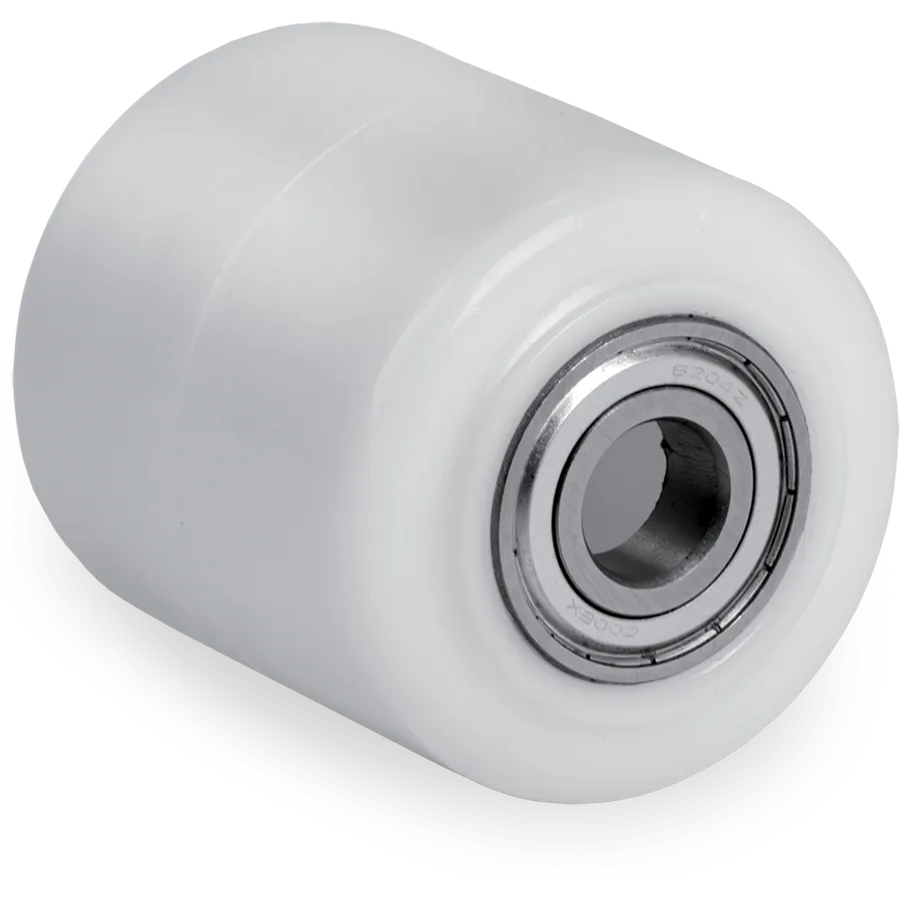

Polyamide 6 roller Ø82×100 mm
One-piece polyamide 6 pallet truck rollers
Tellure description: 76 82X100 CC F20 LC100
- Diameter (D)
- Ø 82mm
- Width (F)
- 100mm
- Load at 4 km/h
- 1,200daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 763015
- Series
- Tellure Rôta 76
- Tread
- Polyamide 6
- Diameter (D)
- 82 mm
- Width (F)
- 100 mm
- Load at 4 km/h
- 1,200 daN
- Static load
- 1,400 daN
- Bearing
- Ball bearings 2Z
- Bore diameter (DD)
- 20 mm
- Hub length (L)
- 100 mm
- Seat diameter (LL)
- 47 mm
- Bearing seat depth (M)
- 14 mm
Other sizes in this family
One-piece polyamide 6 pallet truck rollers
10 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 760001 | Ø40×43 mm | — | C/B | — | 76 40X43 CB F17 BLK |
| 760002 | Ø50×55 mm | — | C/B | — | 76 50X55 CB F12 |
| 761011 | Ø82×60 mm | 700 daN | S/C | — | 76 82X60 SC 47X14 |
| 763011 | Ø82×60 mm | 700 daN | C/C 2Z | — | 76 82X60 CC F20 LC60 |
| 761012 | Ø82×70 mm | 850 daN | S/C | — | 76 82X70 SC 47X14 |
| 763012 | Ø82×70 mm | 850 daN | C/C 2Z | — | 76 82X70 CC F20 LC70 |
| 761014 | Ø82×90 mm | 1,100 daN | S/C | — | 76 82X90 SC 47X14 |
| 763014 | Ø82×90 mm | 1,100 daN | C/C 2Z | — | 76 82X90 CC F20 LC90 |
| 761015 | Ø82×100 mm | 1,200 daN | S/C | — | 76 82X100 SC 47X14 |
| 763015 | Ø82×100 mm | 1,200 daN | C/C 2Z | — | This article |
