593101F12Series 59TR-PowerHigh polyurethane roller Ø85×60 mm
TR-PowerHigh polyurethane pallet truck rollers, steel centre, and compact castors
Load capacity: 600 daN
772125Representative image of the familyDrawing dimensions
- DDiameter
- 85 mm
- FWidth
- 90 mm
- DDBore diameter
- 20 mm
- LHub length
- 90 mm
- LLSeat diameter
- 47 mm
- MBearing housing depth
- 14 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

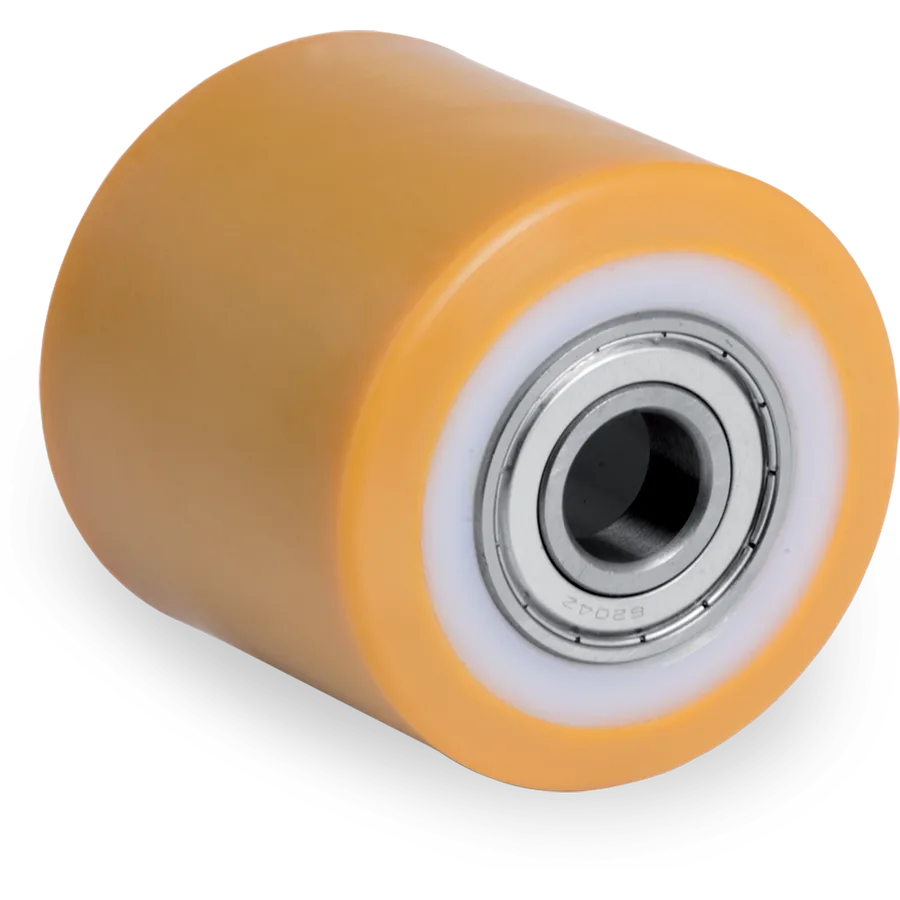

TR polyurethane roller Ø85×90 mm
TR polyurethane pallet truck rollers, polyamide 6 centre
Tellure description: 77 85X90 CC F20 LC90
- Diameter (D)
- Ø 85mm
- Width (F)
- 90mm
- Load at 4 km/h
- 600daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 772125
- Series
- Tellure Rôta 77
- Tread
- TR polyurethane
- Diameter (D)
- 85 mm
- Width (F)
- 90 mm
- Load at 4 km/h
- 600 daN
- Load at 6 km/h
- 480 daN
- Static load
- 700 daN
- Bearing
- Ball bearings 2Z
- Bore diameter (DD)
- 20 mm
- Hub length (L)
- 90 mm
- Seat diameter (LL)
- 47 mm
- Bearing seat depth (M)
- 14 mm
Other sizes in this family
TR polyurethane pallet truck rollers, polyamide 6 centre
10 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 772132 | Ø82×70 mm | 450 daN | C/C 2Z | — | 77 82X70 CC F20 LC70 |
| 774132 | Ø82×70 mm | 450 daN | S/C | — | 77 82X70 SC 47X14 |
| 772135 | Ø82×90 mm | 510 daN | C/C 2Z | — | 77 82X90 CC F20 LC90 |
| 774135 | Ø82×90 mm | 510 daN | S/C | — | 77 82X90 SC 47X14 |
| 772137 | Ø82×100 mm | 600 daN | C/C 2Z | — | 77 82X100 CC F20 LC100 |
| 774137 | Ø82×100 mm | 600 daN | S/C | — | 77 82X100 SC 47X14 |
| 772122 | Ø85×70 mm | 500 daN | C/C 2Z | — | 77 85X70 CC F20 LC70 |
| 774122 | Ø85×70 mm | 500 daN | S/C | — | 77 85X70 SC 47X14 |
| 772125 | Ø85×90 mm | 600 daN | C/C 2Z | — | This article |
| 774125 | Ø85×90 mm | 600 daN | S/C | — | 77 85X90 SC 47X14 |
