825601Series 82Pneumatic rubber swivel castor Ø260×85 mm
Pneumatic wheels, polypropylene centre
Load capacity: 150 daN
827601Representative image of the familyDrawing dimensions
- DDiameter
- 260 mm
- FWidth
- 75 mm
- HOverall height
- 300 mm
- A×BTop plate (outside)
- 200 × 160 mm
- AA×BBBolt hole spacing
- 160 × 120 mm
- EEBolt hole diameter
- 14 mm
- ESwivel offset
- 86 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

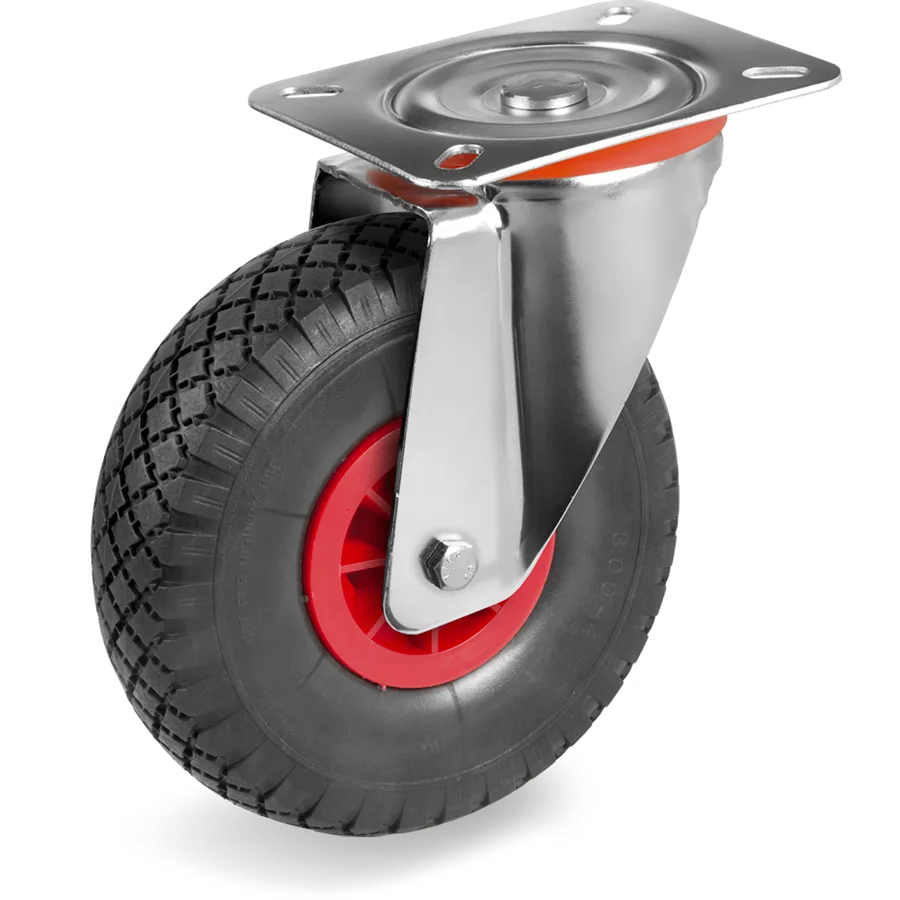

Pneumatic rubber swivel castor Ø260×75 mm
Puncture-proof wheels, polypropylene centre
Tellure description: 82AF 260X75 CR SRP/M R4.0
- Diameter (D)
- Ø 260mm
- Width (F)
- 75mm
- Load at 4 km/h
- 70daN
- Tread
- Pneumatic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 827601
- Series
- Tellure Rôta 82AF
- Tread
- Pneumatic rubber
- Diameter (D)
- 260 mm
- Width (F)
- 75 mm
- Load at 4 km/h
- 70 daN
- Bearing
- Roller bearing
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 300 mm
- Top plate (A × B)
- 200 × 160 mm
- Bolt hole spacing (AA × BB)
- 160 × 120 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
