609564Series 60Thermoplastic polyurethane swivel castor Ø150×45 mm with brake
Injected polyurethane wheels, polyamide 6 centre
Load capacity: 300 daN
609554Representative image of the familyDrawing dimensions
- DDiameter
- 150 mm
- FWidth
- 45 mm
- HOverall height
- 192 mm
- GPlate diameter
- 83 mm
- TPlain stem diameter
- 38 mm
- FSPlain stem length
- 57 mm
- ESwivel offset
- 40 mm
- OBrake swing radius
- 150 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

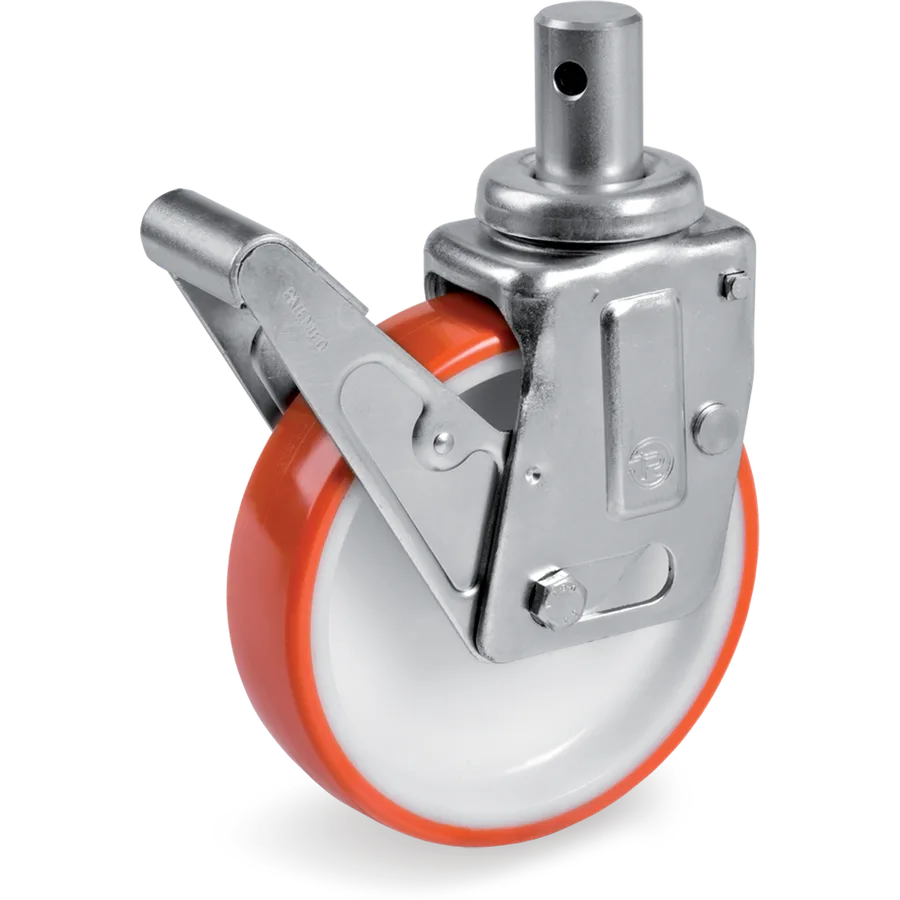

Thermoplastic polyurethane swivel castor Ø150×45 mm with brake
Injected polyurethane wheels, polyamide 6 centre
Tellure description: 60 150X45 CB SRC/LIS TRAB MP
- Diameter (D)
- Ø 150mm
- Width (F)
- 45mm
- Load at 4 km/h
- 300daN
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 609554
- Series
- Tellure Rôta 60
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 150 mm
- Width (F)
- 45 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 192 mm
- Fitting
- Stem
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Single-pedal brake
Other sizes in this family
Injected polyurethane wheels, polyamide 6 centre
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 609553 | Ø125×35 mm | 250 daN | C/B | Yes | 60 125X35 CB SRC/LIS TRAB MP |
| 609554 | Ø150×45 mm | 300 daN | C/B | Yes | This article |
| 609704 | Ø150×45 mm | 300 daN | C/B | Yes | 60 150X45 CB SRC/LIVEL TRAB MP |
| 609576 | Ø200×50 mm | 400 daN | C/B | Yes | 60 200X50 CB SRC/LIS TRAB MP |
| 609726 | Ø200×50 mm | 400 daN | C/B | Yes | 60 200X50 CB SRC/LIVEL TRAB MP |
