689513Representative image of the familyDrawing dimensions
- DDiameter
- 125 mm
- FWidth
- 38 mm
- HOverall height
- 150 mm
- GPlate diameter
- 89 mm
- TPlain stem diameter
- 38 mm
- FSPlain stem length
- 57 mm
- ESwivel offset
- 30 mm
- OBrake swing radius
- 130 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

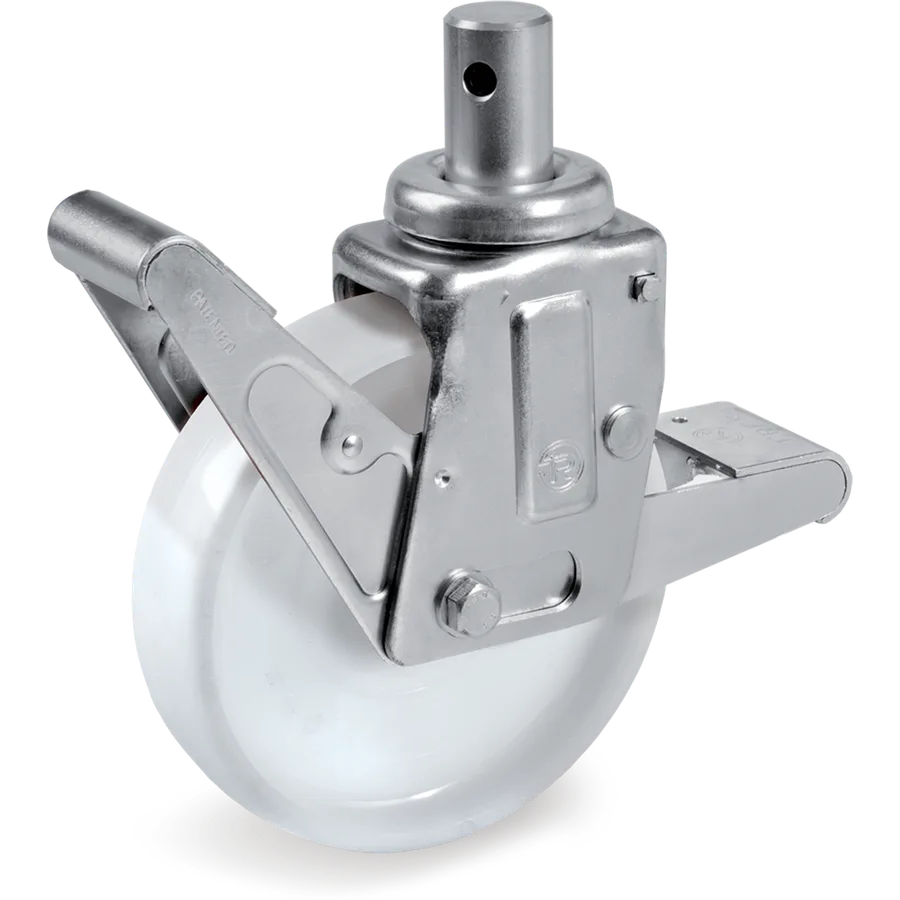

Polyamide 6 swivel castor Ø125×38 mm with brake
One-piece polyamide 6 wheels
Tellure description: 68 125X38 CB SRC/LIS TRAB DP
- Diameter (D)
- Ø 125mm
- Width (F)
- 38mm
- Load at 4 km/h
- 250daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 689513
- Series
- Tellure Rôta 68
- Tread
- Polyamide 6
- Diameter (D)
- 125 mm
- Width (F)
- 38 mm
- Load at 4 km/h
- 250 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 150 mm
- Fitting
- Stem
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Double-pedal brake
