227802Series 22Rubber swivel castor Ø100×30 mm
Grey standard rubber wheels, polypropylene centre
Load capacity: 80 daN
224802Representative image of the familyDrawing dimensions
- DDiameter
- 100 mm
- FWidth
- 30 mm
- HOverall height
- 128 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
- ESwivel offset
- 35 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
Rubber swivel castor Ø100×30 mm
Grey standard rubber wheels, polypropylene centre
Tellure description: 22 100X30 CB SRP/NLX R1.0
- Diameter (D)
- Ø 100mm
- Width (F)
- 30mm
- Load at 4 km/h
- 80daN
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 224802
- Series
- Tellure Rôta 22
- Tread
- Rubber
- Diameter (D)
- 100 mm
- Width (F)
- 30 mm
- Load at 4 km/h
- 80 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 128 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- No
Other sizes in this family
Grey standard rubber wheels, polypropylene centre
8 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 224801 | Ø80×25 mm | 65 daN | C/B | No | 22 80X25 CB SRP/NLX R1.0 |
| 224802 | Ø100×30 mm | 80 daN | C/B | No | This article |
| 224803 | Ø125×37.5 mm | 110 daN | C/B | No | 22 125X37,5 CB SRP/NLX R1.0 |
| 224804 | Ø140×37.5 mm | 120 daN | C/B | No | 22 140X37,5 CB SRP/NLX R1.0 |
| 224811 | Ø150×40 mm | 130 daN | C/B | No | 22 150X40 CB SRP/NLX R1.0 |
| 224810 | Ø160×40 mm | 150 daN | C/B | No | 22 160X40 CB SRP/NLX R2.0 |
| 224805 | Ø180×45 mm | 180 daN | C/B | No | 22 180X45 CB SRP/NLX R2.0 |
| 224806 | Ø200×50 mm | 225 daN | C/B | No | 22 200X50 CB SRP/NLX R2.0 |
Similar alternatives
- 227802Series 22
714402Series 71Thermoplastic rubber swivel castor Ø100×30 mm
Thermoplastic rubber wheels, polypropylene centre
Load capacity: 100 daN

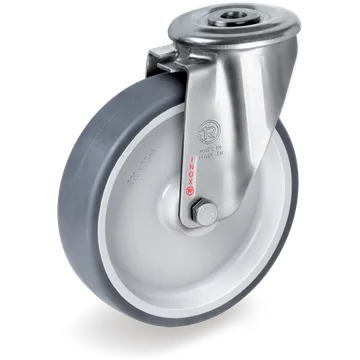

717902Series 71Thermoplastic rubber swivel castor Ø100×30 mm
