225504Series 22Rubber swivel castor Ø140×37.5 mm with brake
Ruedas en goma antihuella, núcleo en polipropileno, soporte giratorio taladro pasador NLX freno delantero
Load capacity: 120 daN

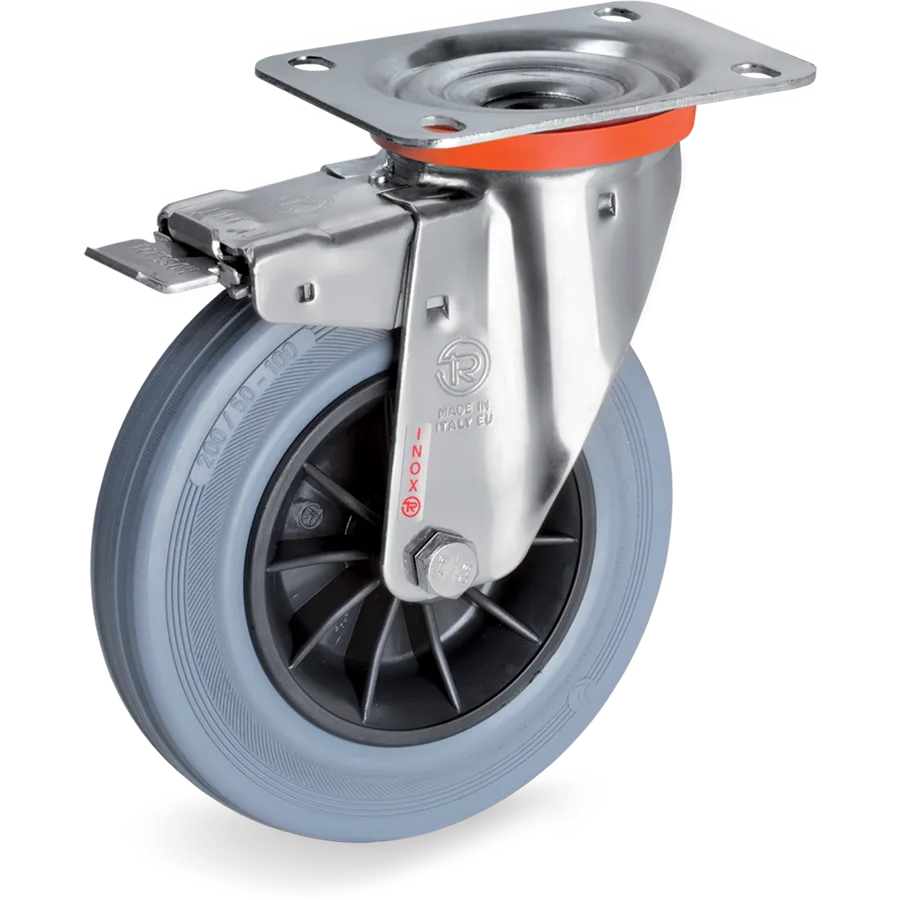

225404Representative image of the familyRubber swivel castor Ø140×37.5 mm with brake
Ruedas en goma antihuella, núcleo en polipropileno, soporte giratorio pletina NLX freno delantero
Tellure description: 22 140X37,5 CB SRP/NLX+FA R1.0
- Diameter (D)
- Ø 140mm
- Width (F)
- 37.5mm
- Load at 4 km/h
- 120daN
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 225404
- Series
- Tellure Rôta 22
- Tread
- Rubber
- Diameter (D)
- 140 mm
- Width (F)
- 37.5 mm
- Load at 4 km/h
- 120 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Ruedas en goma antihuella, núcleo en polipropileno, soporte giratorio pletina NLX freno delantero
8 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 225401 | Ø80×25 mm | 65 daN | C/B | Yes | 22 80X25 CB SRP/NLX+FA R1.0 |
| 225402 | Ø100×30 mm | 80 daN | C/B | Yes | 22 100X30 CB SRP/NLX+FA R1.0 |
| 225403 | Ø125×37.5 mm | 110 daN | C/B | Yes | 22 125X37,5 CB SRP/NLX+FA R1.0 |
| 225404 | Ø140×37.5 mm | 120 daN | C/B | Yes | This article |
| 225411 | Ø150×40 mm | 130 daN | C/B | Yes | 22 150X40 CB SRP/NLX+FA R1.0 |
| 225410 | Ø160×40 mm | 150 daN | C/B | Yes | 22 160X40 CB SRP/NLX+FA R2.0 |
| 225405 | Ø180×45 mm | 180 daN | C/B | Yes | 22 180X45 CB SRP/NLX+FA R2.0 |
| 225406 | Ø200×50 mm | 225 daN | C/B | Yes | 22 200X50 CB SRP/NLX+FA R2.0 |
