225410Series 22Rubber swivel castor Ø160×40 mm with brake
Ruedas en goma antihuella, núcleo en polipropileno, soporte giratorio pletina NLX freno delantero
Load capacity: 150 daN

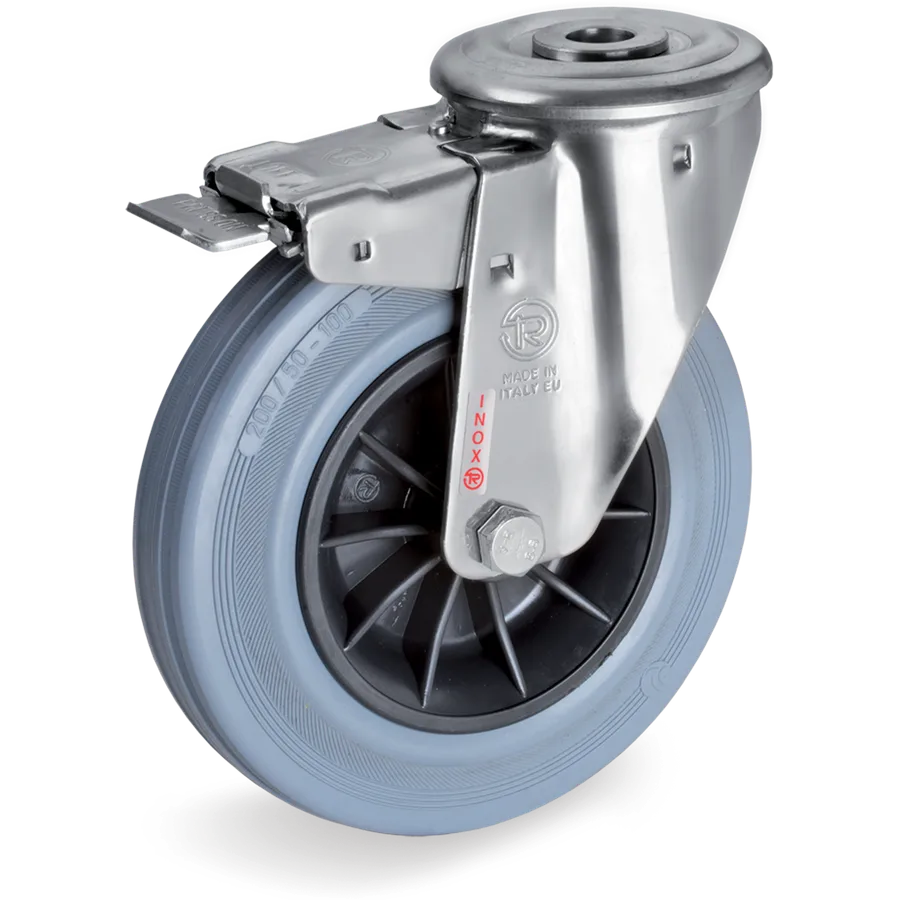

225510Representative image of the familyRubber swivel castor Ø160×40 mm with brake
Ruedas en goma antihuella, núcleo en polipropileno, soporte giratorio taladro pasador NLX freno delantero
Tellure description: 22 160X40 CB SRF/NLX+FA C2
- Diameter (D)
- Ø 160mm
- Width (F)
- 40mm
- Load at 4 km/h
- 150daN
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 225510
- Series
- Tellure Rôta 22
- Tread
- Rubber
- Diameter (D)
- 160 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 150 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Fitting
- Bolt hole
- Bracket material
- Stainless steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Ruedas en goma antihuella, núcleo en polipropileno, soporte giratorio taladro pasador NLX freno delantero
8 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 225501 | Ø80×25 mm | 65 daN | C/B | Yes | 22 80X25 CB SRF/NLX+FA C1 |
| 225502 | Ø100×30 mm | 80 daN | C/B | Yes | 22 100X30 CB SRF/NLX+FA C1 |
| 225503 | Ø125×37.5 mm | 110 daN | C/B | Yes | 22 125X37,5 CB SRF/NLX+FA C1 |
| 225504 | Ø140×37.5 mm | 120 daN | C/B | Yes | 22 140X37,5 CB SRF/NLX+FA C1 |
| 225511 | Ø150×40 mm | 130 daN | C/B | Yes | 22 150X40 CB SRF/NLX+FA C1 |
| 225510 | Ø160×40 mm | 150 daN | C/B | Yes | This article |
| 225505 | Ø180×45 mm | 180 daN | C/B | Yes | 22 180X45 CB SRF/NLX+FA C2 |
| 225506 | Ø200×50 mm | 225 daN | C/B | Yes | 22 200X50 CB SRF/NLX+FA C2 |
Similar alternatives
- 225410Series 22

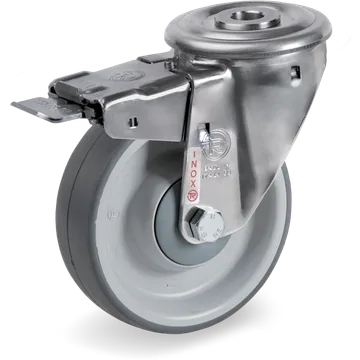

716510Series 71Thermoplastic rubber swivel castor Ø160×50 mm with brake
Ruedas de Goma termoplástica, nucleo de polipropileno, soporte giratorio con taladro pasador NLX con freno delantero
Load capacity: 200 daN

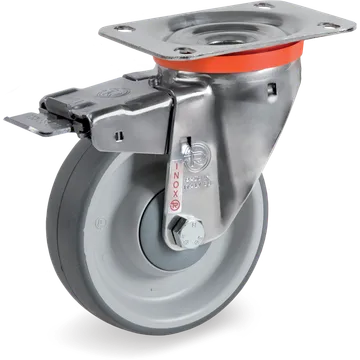

716910Series 71Thermoplastic rubber swivel castor Ø160×50 mm with brake
Ruedas de Goma termoplástica, nucleo de polipropileno, soporte giratorio pletina NLX freno delantero
Load capacity: 200 daN
716704Series 71Thermoplastic rubber swivel castor Ø150×35 mm with brake
Ruedas de Goma termoplástica, nucleo de polipropileno, soporte giratorio pletina NLX con freno delantero
Load capacity: 140 daN
