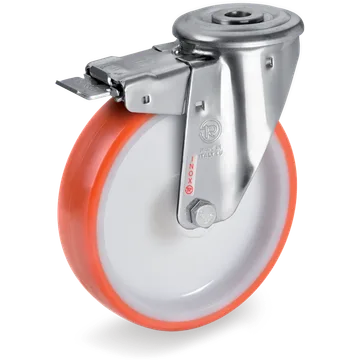

608801Series 60Thermoplastic polyurethane swivel castor Ø80×30 mm with brake
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio taladro pasador NLX freno delantero
Load capacity: 120 daN

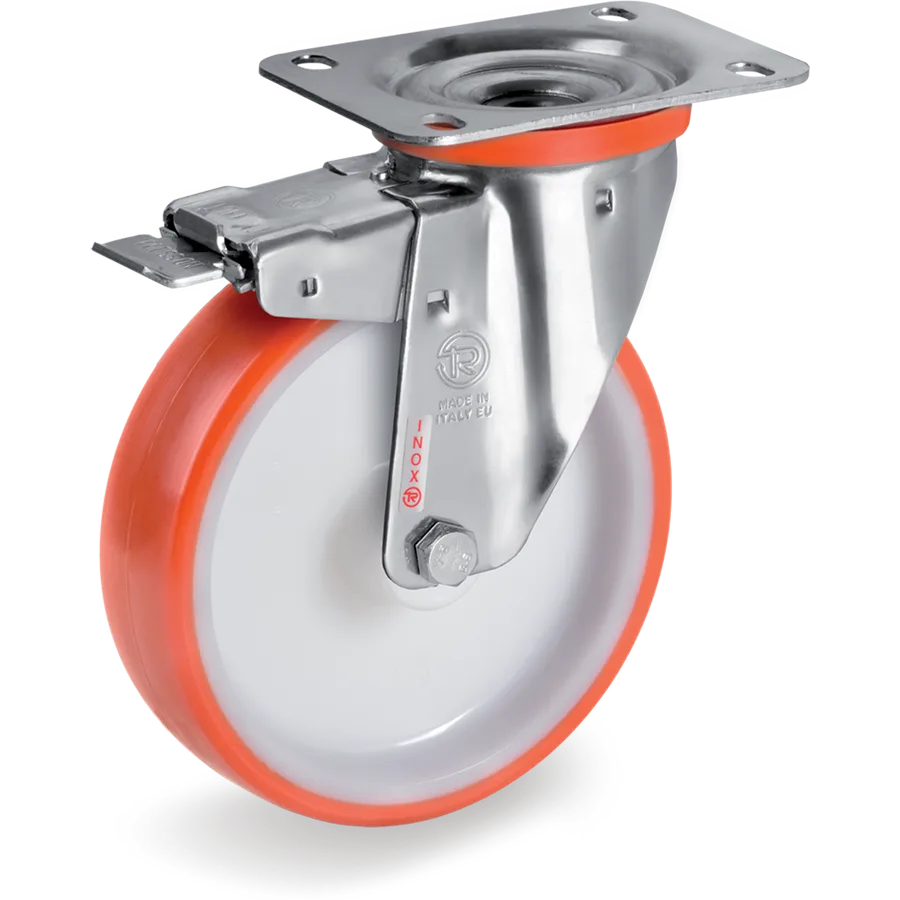

606721Representative image of the familyThermoplastic polyurethane swivel castor Ø80×30 mm with brake
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio pletina NLX freno delantero
Tellure description: 60 80X30 CRX SRP/NLX+FA R1.0
- Diameter (D)
- Ø 80mm
- Width (F)
- 30mm
- Load at 4 km/h
- 120daN
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 606721
- Series
- Tellure Rôta 60
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 80 mm
- Width (F)
- 30 mm
- Load at 4 km/h
- 120 daN
- Bearing
- Roller bearing stainless
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio pletina NLX freno delantero
36 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 606701 | Ø80×30 mm | 120 daN | C/B | Yes | 60 80X30 CB SRP/NLX+FA R1.0 |
| 606721 | Ø80×30 mm | 120 daN | C/RX | Yes | This article |
| 606901 | Ø80×30 mm | 130 daN | C/CX 2RS | Yes | 60 80X30 CCX SRP/NLX+FA R1.0 |
| 616701 | Ø80×30 mm | 75 daN | C/B | Yes | 61 80X30 CB SRP/NLX+FA R1.0 |
| 616721 | Ø80×30 mm | 75 daN | C/RX | Yes | 61 80X30 CRX SRP/NLX+FA R1.0 |
| 616901 | Ø80×30 mm | 85 daN | C/CX 2RS | Yes | 61 80X30 CCX SRP/NLX+FA R1.0 |
| 606702 | Ø100×30 mm | 170 daN | C/B | Yes | 60 100X30 CB SRP/NLX+FA R1.0 |
| 606722 | Ø100×30 mm | 170 daN | C/RX | Yes | 60 100X30 CRX SRP/NLX+FA R1.0 |
| 606902 | Ø100×30 mm | 200 daN | C/CX 2RS | Yes | 60 100X30 CCX SRP/NLX+FA R1.0 |
| 616702 | Ø100×30 mm | 120 daN | C/B | Yes | 61 100X30 CB SRP/NLX+FA R1.0 |
| 616722 | Ø100×30 mm | 120 daN | C/RX | Yes | 61 100X30 CRX SRP/NLX+FA R1.0 |
| 616902 | Ø100×30 mm | 120 daN | C/CX 2RS | Yes | 61 100X30 CCX SRP/NLX+FA R1.0 |
| 606703 | Ø125×35 mm | 220 daN | C/B | Yes | 60 125X35 CB SRP/NLX+FA R1.0 |
| 606723 | Ø125×35 mm | 220 daN | C/RX | Yes | 60 125X35 CRX SRP/NLX+FA R1.0 |
| 606903 | Ø125×35 mm | 220 daN | C/CX 2RS | Yes | 60 125X35 CCX SRP/NLX+FA R1.0 |
| 616703 | Ø125×35 mm | 180 daN | C/B | Yes | 61 125X35 CB SRP/NLX+FA R1.0 |
| 616723 | Ø125×35 mm | 180 daN | C/RX | Yes | 61 125X35 CRX SRP/NLX+FA R1.0 |
| 616903 | Ø125×35 mm | 180 daN | C/CX 2RS | Yes | 61 125X35 CCX SRP/NLX+FA R1.0 |
| 606704 | Ø150×35 mm | 220 daN | C/B | Yes | 60 150X35 CB SRP/NLX+FA R1.0 |
| 606724 | Ø150×35 mm | 220 daN | C/RX | Yes | 60 150X35 CRX SRP/NLX+FA R1.0 |
| 616704 | Ø150×35 mm | 220 daN | C/B | Yes | 61 150X35 CB SRP/NLX+FA R1.0 |
| 616724 | Ø150×35 mm | 220 daN | C/RX | Yes | 61 150X35 CRX SRP/NLX+FA R1.0 |
| 606711 | Ø150×45 mm | 300 daN | C/B | Yes | 60 150X45 CB SRP/NLX+FA R2.0 |
| 606731 | Ø150×45 mm | 300 daN | C/RX | Yes | 60 150X45 CRX SRP/NLX+FA R2.0 |
| 606911 | Ø150×45 mm | 300 daN | C/CX 2RS | Yes | 60 150X45 CCX SRP/NLX+FA R2.0 |
| 616711 | Ø150×45 mm | 250 daN | C/B | Yes | 61 150X45 CB SRP/NLX+FA R2.0 |
| 616731 | Ø150×45 mm | 250 daN | C/RX | Yes | 61 150X45 CRX SRP/NLX+FA R2.0 |
| 616911 | Ø150×45 mm | 250 daN | C/CX 2RS | Yes | 61 150X45 CCX SRP/NLX+FA R2.0 |
| 606910 | Ø160×50 mm | 300 daN | C/CX 2RS | Yes | 60 160X50 CCX SRP/NLX+FA R2.0 |
| 616910 | Ø160×50 mm | 275 daN | C/CX 2RS | Yes | 61 160X50 CCX SRP/NLX+FA R2.0 |
| 606706 | Ø200×50 mm | 300 daN | C/B | Yes | 60 200X50 CB SRP/NLX+FA R2.0 |
| 606726 | Ø200×50 mm | 300 daN | C/RX | Yes | 60 200X50 CRX SRP/NLX+FA R2.0 |
| 606906 | Ø200×50 mm | 300 daN | C/CX 2RS | Yes | 60 200X50 CCX SRP/NLX+FA R2.0 |
| 616706 | Ø200×50 mm | 300 daN | C/B | Yes | 61 200X50 CB SRP/NLX+FA R2.0 |
| 616726 | Ø200×50 mm | 300 daN | C/RX | Yes | 61 200X50 CRX SRP/NLX+FA R2.0 |
| 616906 | Ø200×50 mm | 300 daN | C/CX 2RS | Yes | 61 200X50 CCX SRP/NLX+FA R2.0 |
