625424Series 62NYERTR-Roll polyurethane swivel castor Ø160×50 mm
Round-profile TR-Roll polyurethane wheels, polyamide 6 centre
Load capacity: 400 daN
609410Representative image of the familyDrawing dimensions
- DDiameter
- 160 mm
- FWidth
- 50 mm
- HOverall height
- 205 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 70 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

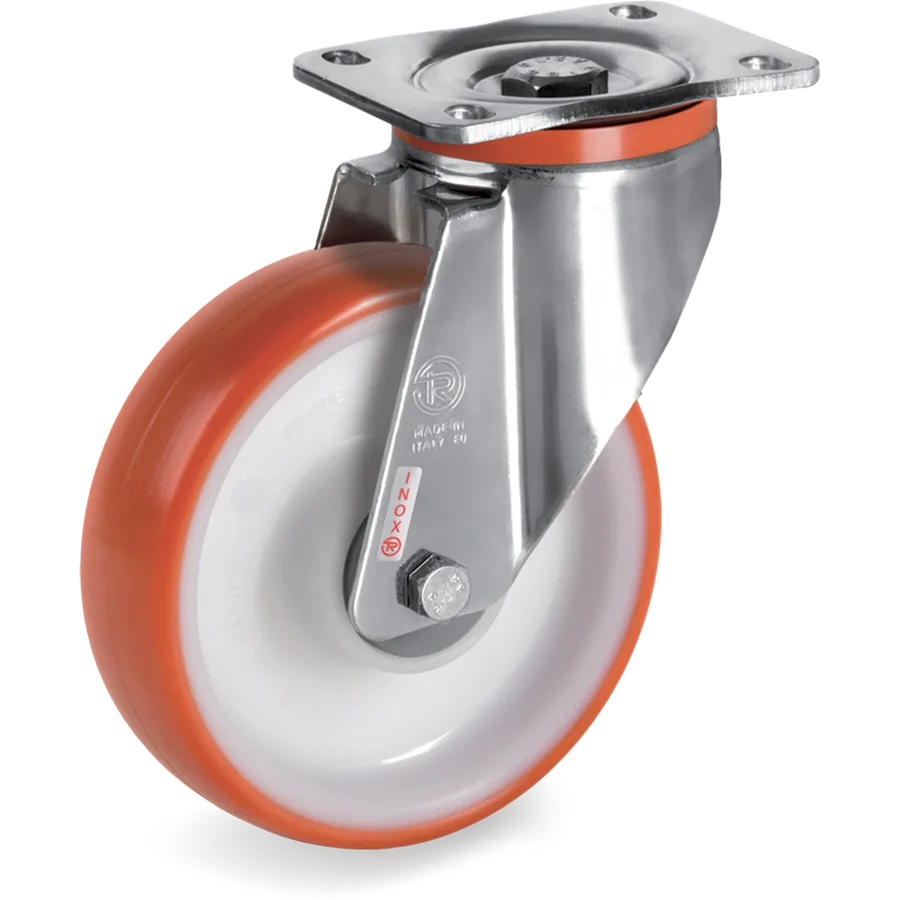

Thermoplastic polyurethane swivel castor Ø160×50 mm
Injected polyurethane wheels, polyamide 6 centre
Tellure description: 60 160X50 CCX SRP/PX R2.0
- Diameter (D)
- Ø 160mm
- Width (F)
- 50mm
- Load at 4 km/h
- 400daN
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 609410
- Series
- Tellure Rôta 60
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 160 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 400 daN
- Bearing
- Ball bearings 2RS stainless
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 205 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- No
