617901Series 61Thermoplastic polyurethane swivel castor Ø80×30 mm
Injected polyurethane wheels for light loads, polyamide 6 centre
Load capacity: 75 daN

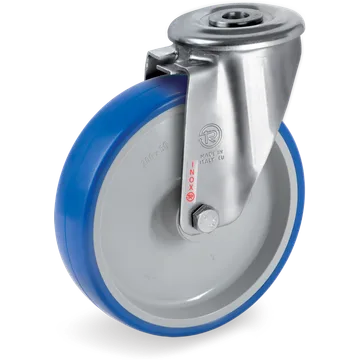

614401Representative image of the familyDrawing dimensions
- DDiameter
- 80 mm
- FWidth
- 30 mm
- HOverall height
- 107 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
- ESwivel offset
- 40 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
Thermoplastic polyurethane swivel castor Ø80×30 mm
Injected polyurethane wheels for light loads, polyamide 6 centre
Tellure description: 61 80X30 CB SRP/NLX R1.0
- Diameter (D)
- Ø 80mm
- Width (F)
- 30mm
- Load at 4 km/h
- 75daN
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 614401
- Series
- Tellure Rôta 61
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 80 mm
- Width (F)
- 30 mm
- Load at 4 km/h
- 75 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 107 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- No
Other sizes in this family
Injected polyurethane wheels for light loads, polyamide 6 centre
12 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 614401 | Ø80×30 mm | 75 daN | C/B | No | This article |
| 614601 | Ø80×30 mm | 75 daN | C/RX | No | 61 80X30 CRX SRP/NLX R1.0 |
| 614402 | Ø100×30 mm | 120 daN | C/B | No | 61 100X30 CB SRP/NLX R1.0 |
| 614602 | Ø100×30 mm | 120 daN | C/RX | No | 61 100X30 CRX SRP/NLX R1.0 |
| 614403 | Ø125×35 mm | 180 daN | C/B | No | 61 125X35 CB SRP/NLX R1.0 |
| 614603 | Ø125×35 mm | 180 daN | C/RX | No | 61 125X35 CRX SRP/NLX R1.0 |
| 614404 | Ø150×35 mm | 220 daN | C/B | No | 61 150X35 CB SRP/NLX R1.0 |
| 614604 | Ø150×35 mm | 220 daN | C/RX | No | 61 150X35 CRX SRP/NLX R1.0 |
| 614411 | Ø150×45 mm | 250 daN | C/B | No | 61 150X45 CB SRP/NLX R2.0 |
| 614611 | Ø150×45 mm | 250 daN | C/RX | No | 61 150X45 CRX SRP/NLX R2.0 |
| 614406 | Ø200×50 mm | 300 daN | C/B | No | 61 200X50 CB SRP/NLX R2.0 |
| 614606 | Ø200×50 mm | 300 daN | C/RX | No | 61 200X50 CRX SRP/NLX R2.0 |
