625122Representative image of the familyDrawing dimensions
- DDiameter
- 100 mm
- FWidth
- 40 mm
- HOverall height
- 128 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
- ESwivel offset
- 35 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

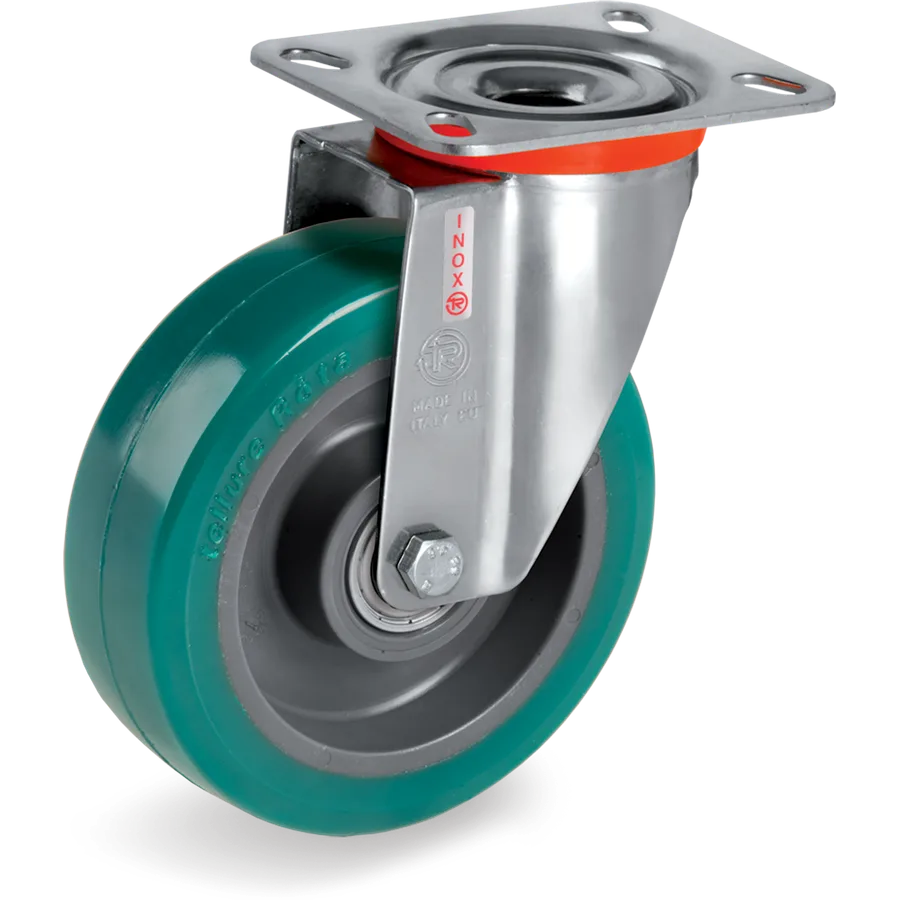

TR-Roll polyurethane swivel castor Ø100×40 mm
TR-Roll polyurethane wheels, polyamide 6 centre
Tellure description: 62NY 100X40 CCX SRP/NLX R1.0
- Diameter (D)
- Ø 100mm
- Width (F)
- 40mm
- Load at 4 km/h
- 200daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 625122
- Series
- Tellure Rôta 62NY
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 100 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 200 daN
- Bearing
- Ball bearings 2RS stainless
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 128 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- No
