685493Representative image of the familyDrawing dimensions
- DDiameter
- 125 mm
- FWidth
- 45 mm
- HOverall height
- 170 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

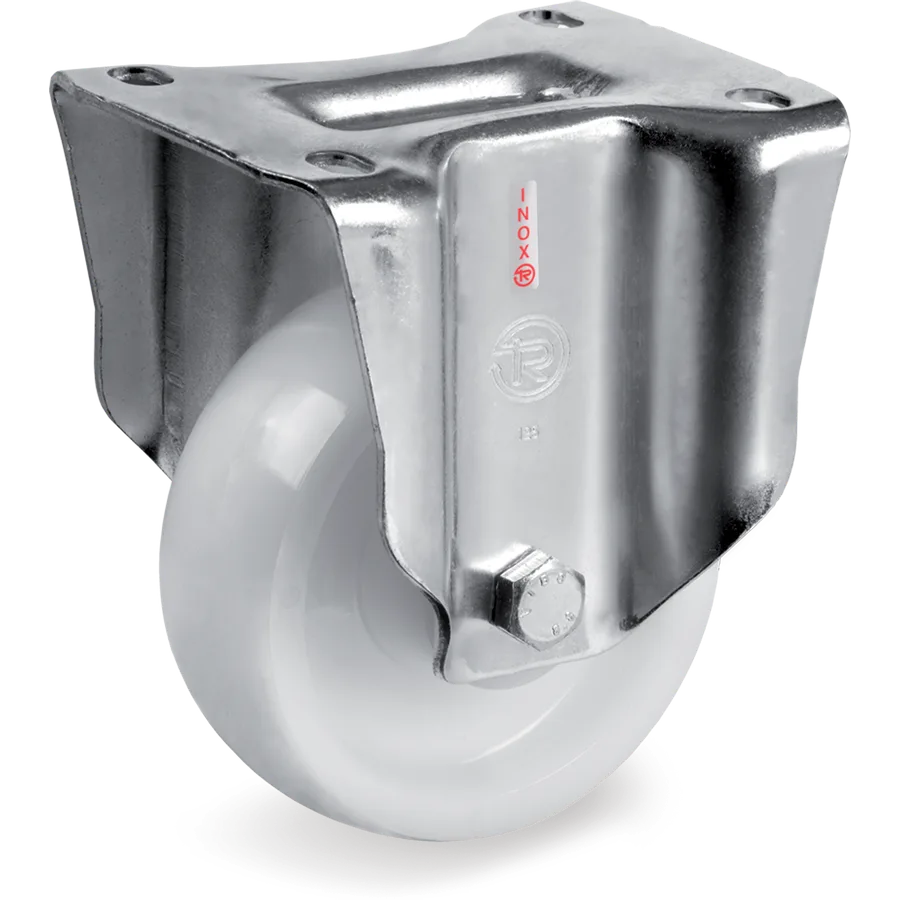

Polyamide 6 fixed castor Ø125×45 mm
One-piece polyamide 6 wheels for heavy loads
Tellure description: 68P 125X45 CCX SF/PX R2.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 45mm
- Load at 4 km/h
- 650daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 685493
- Series
- Tellure Rôta 68P
- Tread
- Polyamide 6
- Diameter (D)
- 125 mm
- Width (F)
- 45 mm
- Load at 4 km/h
- 650 daN
- Bearing
- Ball bearings 2RS stainless
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 170 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- No
Other sizes in this family
One-piece polyamide 6 wheels for heavy loads
6 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 685493 | Ø125×45 mm | 650 daN | C/CX 2RS | No | This article |
| 687133 | Ø125×45 mm | 650 daN | C/B | No | 68P 125X45 CB SF/PX R2.0 |
| 685474 | Ø150×45 mm | 750 daN | C/CX 2RS | No | 68P 150X45 CCX SF/PX R2.0 |
| 687124 | Ø150×45 mm | 750 daN | C/B | No | 68P 150X45 CB SF/PX R2.0 |
| 685476 | Ø200×50 mm | 900 daN | C/CX 2RS | No | 68P 200X50 CCX SF/PX R2.0 |
| 687126 | Ø200×50 mm | 900 daN | C/B | No | 68P 200X50 CB SF/PX R2.0 |
