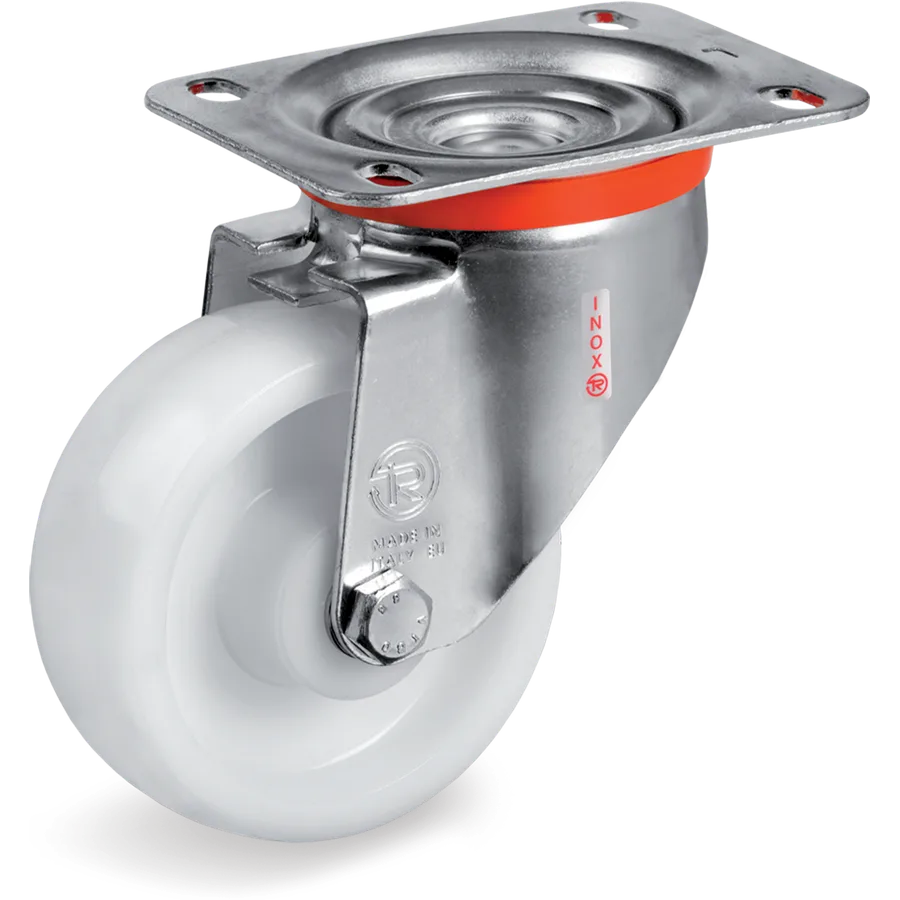

685873Representative image of the familyPolyamide 6 swivel castor Ø125×35 mm
Ruedas monobloque en poliamida 6 para grandes cargas, soporte giratorio pletina NLX
Tellure description: 68P 125X35 CCX SRP/NLX R1.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 35mm
- Load at 4 km/h
- 220daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 685873
- Series
- Tellure Rôta 68P
- Tread
- Polyamide 6
- Diameter (D)
- 125 mm
- Width (F)
- 35 mm
- Load at 4 km/h
- 220 daN
- Bearing
- Ball bearings 2RS stainless
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- No
Other sizes in this family
Ruedas monobloque en poliamida 6 para grandes cargas, soporte giratorio pletina NLX
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 685872 | Ø100×35 mm | 200 daN | C/CX 2RS | No | 68P 100X35 CCX SRP/NLX R1.0 |
| 685873 | Ø125×35 mm | 220 daN | C/CX 2RS | No | This article |
