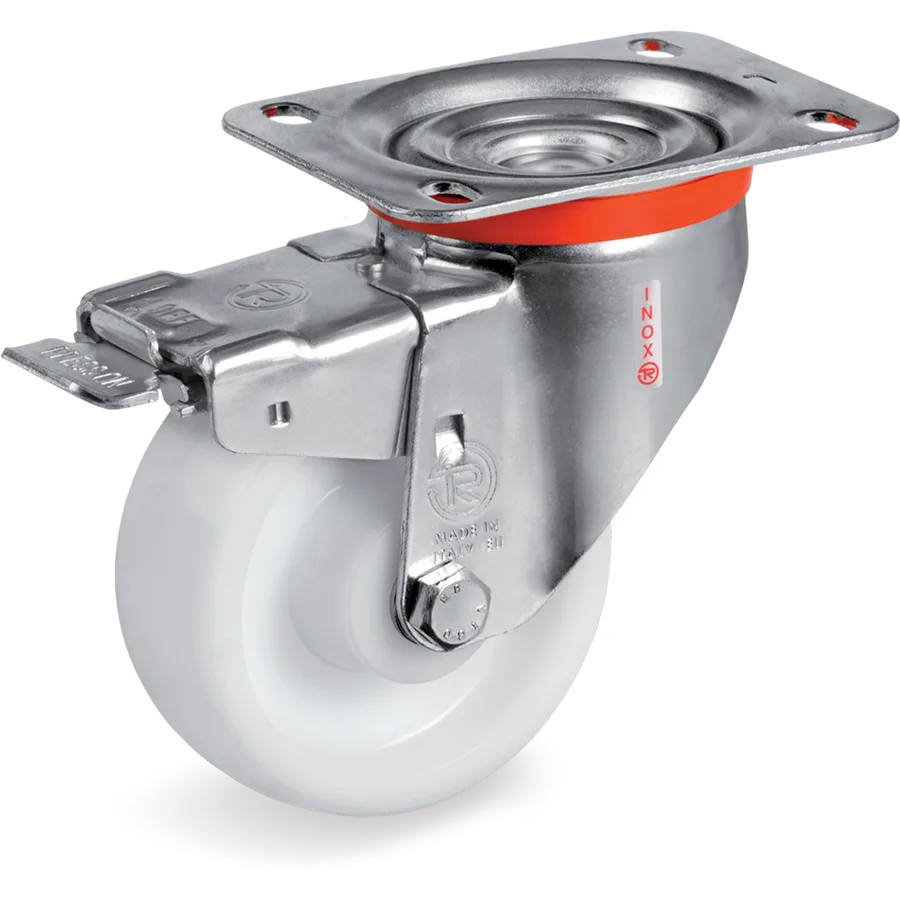

Tellure Rôta 687862 – Polyamide 6 swivel castor Ø100×35 mm with brake687862Representative image of the family

Drawing dimensions

DDiameter
100 mm
FWidth
35 mm
HOverall height
128 mm
A×BTop plate (outside)
100 × 85 mm
AA×BBBolt hole spacing
80 × 60 mm
EEBolt hole diameter
9 mm
ESwivel offset
35 mm
OBrake swing radius
120 mm

Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

Tellure RôtaCode 687862Series 68P

Polyamide 6 swivel castor Ø100×35 mm with brake

One-piece polyamide 6 wheels for heavy loads

Tellure description: 68P 100X35 CCX SRP/NLX+FA R1.0

Diameter (D)
Ø 100mm
Width (F)
35mm
Load at 4 km/h
200daN
Tread
Polyamide 6

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)

Questions about this article?

926 550 642Contact →

Genuine Tellure Rôta product · Made in Italy

Technical specifications

Wheel

Code
687862
Series
Tellure Rôta 68P
Tread
Polyamide 6
Diameter (D)
100 mm
Width (F)
35 mm
Load at 4 km/h
200 daN
Bearing
Ball bearings 2RS stainless

Bracket

Bracket type
Swivel
Overall height (H)
128 mm
Top plate (A × B)
100 × 85 mm
Bolt hole spacing (AA × BB)
80 × 60 mm
Fitting
Top plate
Bracket material
Stainless steel
Brake
Yes
Brake type
Front brake

Other sizes in this family

One-piece polyamide 6 wheels for heavy loads

2 articles

CodeØ × FLoad capacityBearingBrakeTellure description
687862Ø100×35 mm200 daNC/CX 2RSYesThis article
687863Ø125×35 mm220 daNC/CX 2RSYes68P 125X35 CCX SRP/NLX+FA R1.0
