666705Series 66TR polyurethane swivel castor Ø175×40 mm with brake
TR polyurethane wheels, polyamide 6 centre
Load capacity: 300 daN
689005Representative image of the familyDrawing dimensions
- DDiameter
- 175 mm
- FWidth
- 45 mm
- HOverall height
- 217 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 56 mm
- OBrake swing radius
- 156 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

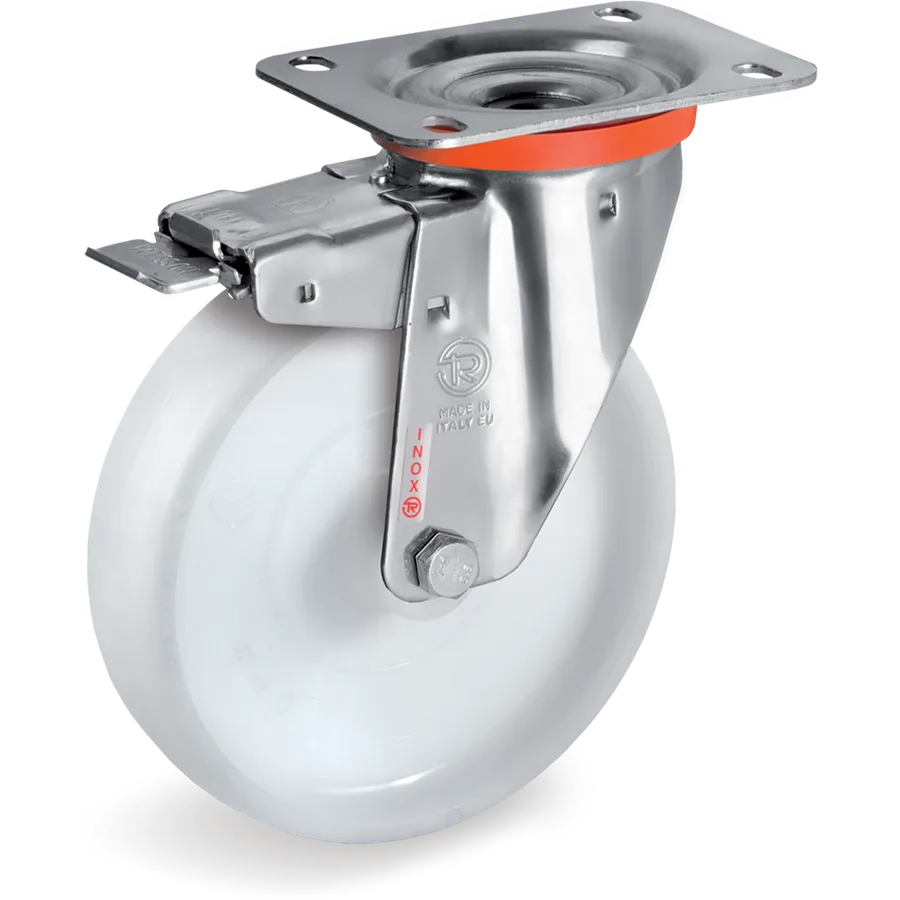

Polyamide 6 swivel castor Ø175×45 mm with brake
One-piece polyamide 6 wheels
Tellure description: 68 175X45 CB SRP/NLX+FA R2.0
- Diameter (D)
- Ø 175mm
- Width (F)
- 45mm
- Load at 4 km/h
- 300daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 689005
- Series
- Tellure Rôta 68
- Tread
- Polyamide 6
- Diameter (D)
- 175 mm
- Width (F)
- 45 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 217 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
One-piece polyamide 6 wheels
12 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 689001 | Ø80×30 mm | 180 daN | C/B | Yes | 68 80X30 CB SRP/NLX+FA R1.0 |
| 689101 | Ø80×30 mm | 180 daN | C/RX | Yes | 68 80X30 CRX SRP/NLX+FA R1.0 |
| 689002 | Ø100×30 mm | 200 daN | C/B | Yes | 68 100X30 CB SRP/NLX+FA R1.0 |
| 689102 | Ø100×30 mm | 200 daN | C/RX | Yes | 68 100X30 CRX SRP/NLX+FA R1.0 |
| 689003 | Ø125×38 mm | 220 daN | C/B | Yes | 68 125X38 CB SRP/NLX+FA R1.0 |
| 689103 | Ø125×38 mm | 220 daN | C/RX | Yes | 68 125X38 CRX SRP/NLX+FA R1.0 |
| 689004 | Ø150×45 mm | 300 daN | C/B | Yes | 68 150X45 CB SRP/NLX+FA R2.0 |
| 689104 | Ø150×45 mm | 300 daN | C/RX | Yes | 68 150X45 CRX SRP/NLX+FA R2.0 |
| 689005 | Ø175×45 mm | 300 daN | C/B | Yes | This article |
| 689105 | Ø175×45 mm | 300 daN | C/RX | Yes | 68 175X45 CRX SRP/NLX+FA R2.0 |
| 689006 | Ø200×50 mm | 300 daN | C/B | Yes | 68 200X50 CB SRP/NLX+FA R2.0 |
| 689106 | Ø200×50 mm | 300 daN | C/RX | Yes | 68 200X50 CRX SRP/NLX+FA R2.0 |
