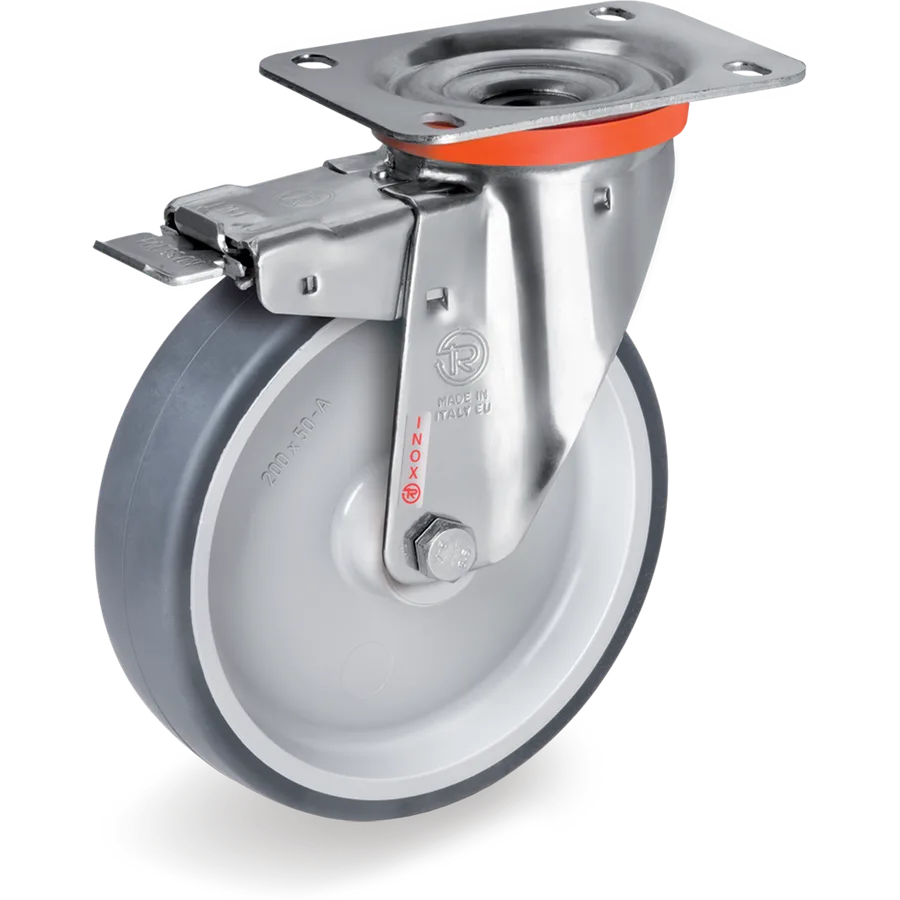

718801Series 71Thermoplastic rubber swivel castor Ø80×30 mm with brake
Thermoplastic rubber wheels, polypropylene centre
Load capacity: 70 daN
716721Representative image of the familyDrawing dimensions
- DDiameter
- 80 mm
- FWidth
- 30 mm
- HOverall height
- 107 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
- ESwivel offset
- 40 mm
- OBrake swing radius
- 120 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
Thermoplastic rubber swivel castor Ø80×30 mm with brake
Thermoplastic rubber wheels, polypropylene centre
Tellure description: 71 80X30 CRX SRP/NLX+FA R1.0
- Diameter (D)
- Ø 80mm
- Width (F)
- 30mm
- Load at 4 km/h
- 70daN
- Tread
- Thermoplastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 716721
- Series
- Tellure Rôta 71
- Tread
- Thermoplastic rubber
- Diameter (D)
- 80 mm
- Width (F)
- 30 mm
- Load at 4 km/h
- 70 daN
- Bearing
- Roller bearing stainless
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 107 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Thermoplastic rubber wheels, polypropylene centre
12 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 716701 | Ø80×30 mm | 70 daN | C/B | Yes | 71 80X30 CB SRP/NLX+FA R1.0 |
| 716721 | Ø80×30 mm | 70 daN | C/RX | Yes | This article |
| 716702 | Ø100×30 mm | 100 daN | C/B | Yes | 71 100X30 CB SRP/NLX+FA R1.0 |
| 716722 | Ø100×30 mm | 100 daN | C/RX | Yes | 71 100X30 CRX SRP/NLX+FA R1.0 |
| 716703 | Ø125×35 mm | 120 daN | C/B | Yes | 71 125X35 CB SRP/NLX+FA R1.0 |
| 716723 | Ø125×35 mm | 120 daN | C/RX | Yes | 71 125X35 CRX SRP/NLX+FA R1.0 |
| 716704 | Ø150×35 mm | 140 daN | C/B | Yes | 71 150X35 CB SRP/NLX+FA R1.0 |
| 716724 | Ø150×35 mm | 140 daN | C/RX | Yes | 71 150X35 CRX SRP/NLX+FA R1.0 |
| 716711 | Ø150×45 mm | 180 daN | C/B | Yes | 71 150X45 CB SRP/NLX+FA R2.0 |
| 716731 | Ø150×45 mm | 180 daN | C/RX | Yes | 71 150X45 CRX SRP/NLX+FA R2.0 |
| 716706 | Ø200×50 mm | 225 daN | C/B | Yes | 71 200X50 CB SRP/NLX+FA R2.0 |
| 716726 | Ø200×50 mm | 225 daN | C/RX | Yes | 71 200X50 CRX SRP/NLX+FA R2.0 |
