604403Series 60Thermoplastic polyurethane swivel castor Ø125×35 mm
Injected polyurethane wheels, polyamide 6 centre
Load capacity: 220 daN
738003Representative image of the familyDrawing dimensions
- DDiameter
- 125 mm
- FWidth
- 40 mm
- HOverall height
- 156 mm
- GPlate diameter
- 73 mm
- GGThrough-hole diameter
- 12 mm
- ESwivel offset
- 37 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

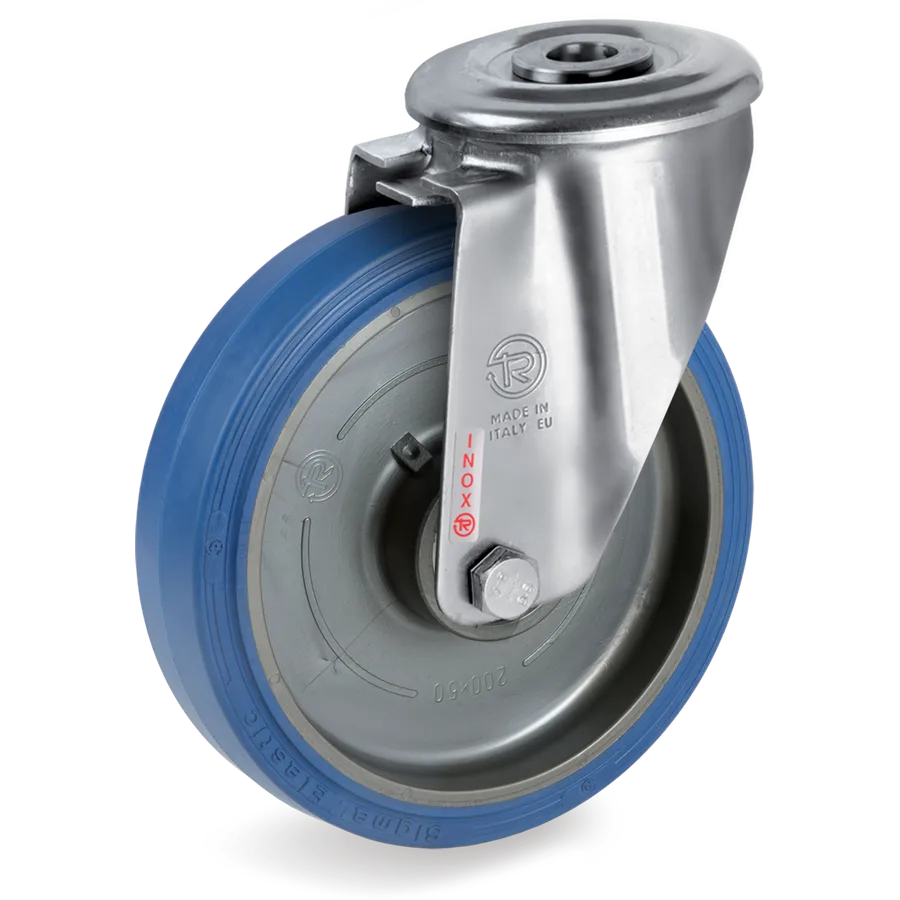

Elastic rubber swivel castor Ø125×40 mm
Sigma Elastic rubber wheels, polyamide 6 centre
Tellure description: 73 125X40 CB SRF/NLX C1
- Diameter (D)
- Ø 125mm
- Width (F)
- 40mm
- Load at 4 km/h
- 220daN
- Tread
- Elastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 738003
- Series
- Tellure Rôta 73
- Tread
- Elastic rubber
- Diameter (D)
- 125 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 220 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 156 mm
- Fitting
- Bolt hole
- Bracket material
- Stainless steel
- Brake
- No
