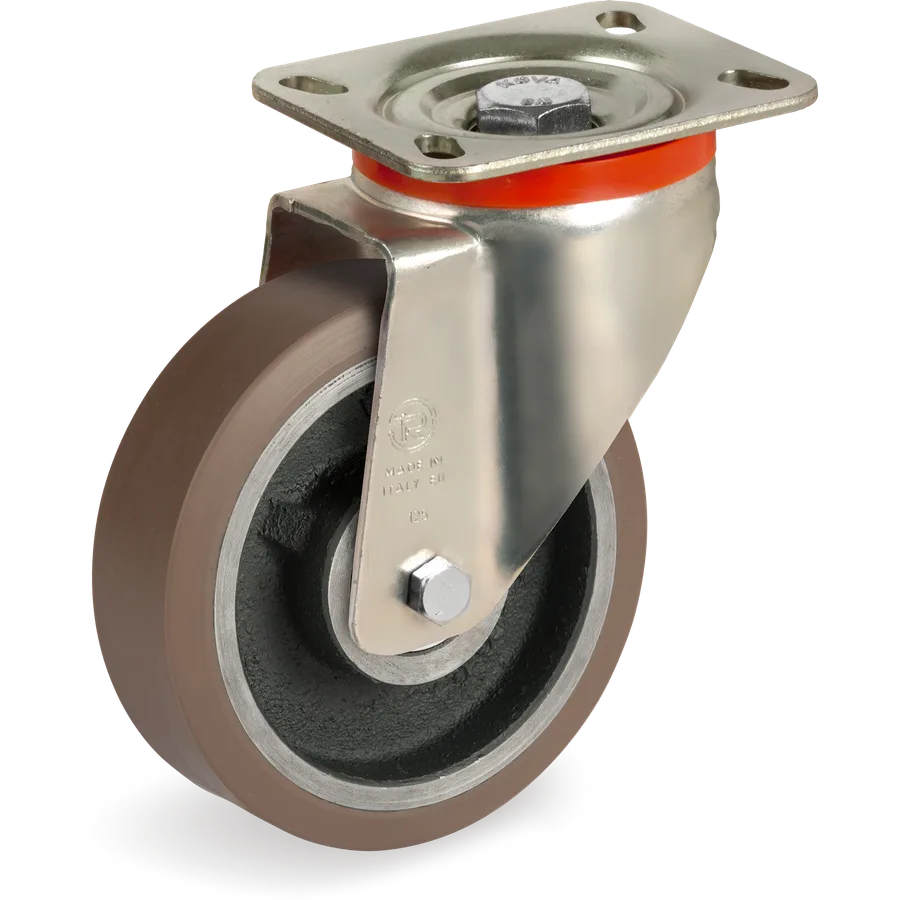

587852Series 58TR-PowerHigh polyurethane swivel castor Ø100×38 mm
Ruedas de poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte giratorio pletina EP
Load capacity: 350 daN
585852Representative image of the familyTR-PowerHigh polyurethane swivel castor Ø100×38 mm
Ruedas en poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte giratorio pletina P
Tellure description: 58GH 100X38 CC SRP/P R1.0
- Diameter (D)
- Ø 100mm
- Width (F)
- 38mm
- Load at 4 km/h
- 350daN
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 585852
- Series
- Tellure Rôta 58GH
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 100 mm
- Width (F)
- 38 mm
- Load at 4 km/h
- 350 daN
- Load at 6 km/h
- 350 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas en poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte giratorio pletina P
7 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 585851 | Ø80×28 mm | 350 daN | C/C 2Z | No | 58GH 80X28 CC SRP/P R1.0 |
| 585852 | Ø100×38 mm | 350 daN | C/C 2Z | No | This article |
| 585853 | Ø125×38 mm | 350 daN | C/C 2Z | No | 58GH 125X38 CC SRP/P R1.0 |
| 585863 | Ø125×50 mm | 650 daN | C/C 2Z | No | 58 125X50 CC SRP/P R2.0 |
| 585854 | Ø150×50 mm | 750 daN | C/C 2Z | No | 58 150X50 CC SRP/P R2.0 |
| 585864 | Ø160×50 mm | 750 daN | C/C 2Z | No | 58 160X50 CCSRP/P R2.0 |
| 585856 | Ø200×50 mm | 750 daN | C/C 2Z | No | 58 200X50 CC SRP/P R2.0 |
Similar alternatives
- 587852Series 58
635852Series 63GHVulkollan® swivel castor Ø100×38 mm
Ruedas de poliuretano Vulkollan®, núcleo de hierro fundido, soporte giratorio pletina P
Load capacity: 350 daN

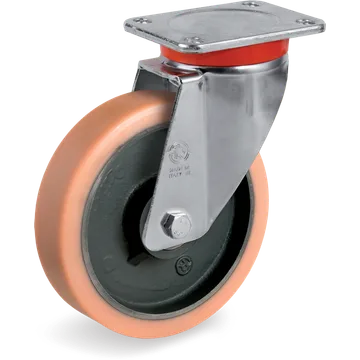

637852Series 63GHVulkollan® swivel castor Ø100×38 mm
