635014Series 63GH
585864Representative image of the familyDrawing dimensions
- DDiameter
- 160 mm
- FWidth
- 50 mm
- HOverall height
- 205 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 70 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
TR-PowerHigh polyurethane swivel castor Ø160×50 mm
TR-PowerHigh polyurethane wheels, machined cast iron centre
Tellure description: 58 160X50 CCSRP/P R2.0
- Diameter (D)
- Ø 160mm
- Width (F)
- 50mm
- Load at 4 km/h
- 750daN
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 585864
- Series
- Tellure Rôta 58
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 160 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 750 daN
- Load at 6 km/h
- 750 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 205 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
TR-PowerHigh polyurethane wheels, machined cast iron centre
7 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 585851 | Ø80×28 mm | 350 daN | C/C 2Z | No | 58GH 80X28 CC SRP/P R1.0 |
| 585852 | Ø100×38 mm | 350 daN | C/C 2Z | No | 58GH 100X38 CC SRP/P R1.0 |
| 585853 | Ø125×38 mm | 350 daN | C/C 2Z | No | 58GH 125X38 CC SRP/P R1.0 |
| 585863 | Ø125×50 mm | 650 daN | C/C 2Z | No | 58 125X50 CC SRP/P R2.0 |
| 585854 | Ø150×50 mm | 750 daN | C/C 2Z | No | 58 150X50 CC SRP/P R2.0 |
| 585864 | Ø160×50 mm | 750 daN | C/C 2Z | No | This article |
| 585856 | Ø200×50 mm | 750 daN | C/C 2Z | No | 58 200X50 CC SRP/P R2.0 |
Similar alternatives
- 635014Series 63GH
635864Series 63GH
637864Series 63GH

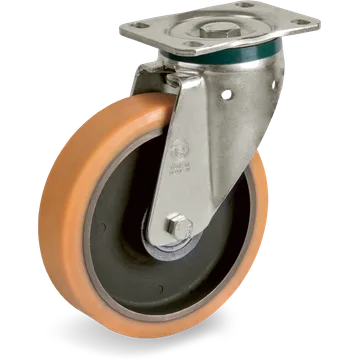

645014Series 64TR polyurethane swivel castor Ø160×50 mm
