584556Series 58TR-PowerHigh polyurethane swivel castor Ø200×50 mm
TR-PowerHigh polyurethane wheels, machined cast iron centre
Load capacity: 300 daN
604736Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 50 mm
- HOverall height
- 240 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 56 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

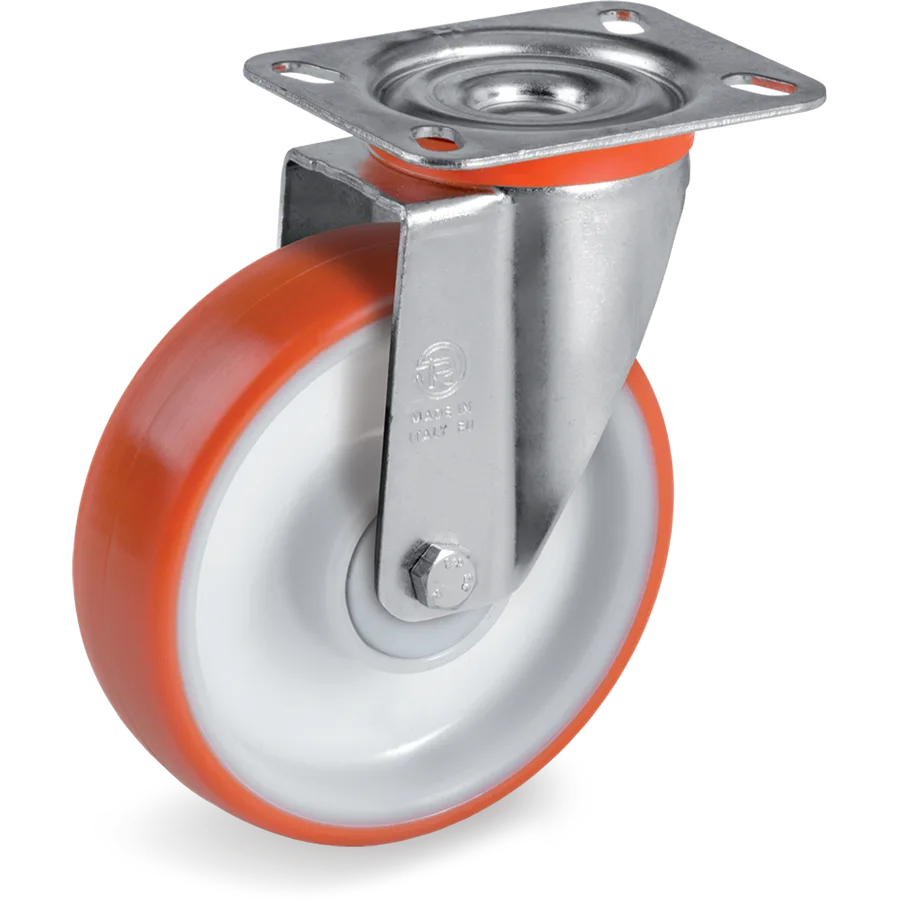

Thermoplastic polyurethane swivel castor Ø200×50 mm
Injected polyurethane wheels, polyamide 6 centre
Tellure description: 60 200X50 CC SRP/NL R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 300daN
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 604736
- Series
- Tellure Rôta 60
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 240 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Injected polyurethane wheels, polyamide 6 centre
30 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 604201 | Ø80×30 mm | 120 daN | C/B | No | 60 80X30 CB SRP/NL R1.0 |
| 604501 | Ø80×30 mm | 120 daN | C/R | No | 60 80X30 CR SRP/NL R1.0 |
| 604701 | Ø80×30 mm | 130 daN | C/C 2Z | No | 60 80X30 CC SRP/NL R1.0 |
| 614201 | Ø80×30 mm | 75 daN | C/B | No | 61 80X30 CB SRP/NL R1.0 |
| 614501 | Ø80×30 mm | 75 daN | C/R | No | 61 80X30 CR SRP/NL R1.0 |
| 604202 | Ø100×30 mm | 170 daN | C/B | No | 60 100X30 CB SRP/NL R1.0 |
| 604502 | Ø100×30 mm | 170 daN | C/R | No | 60 100X30 CR SRP/NL R1.0 |
| 604702 | Ø100×30 mm | 200 daN | C/C 2Z | No | 60 100X30 CC SRP/NL R1.0 |
| 614202 | Ø100×30 mm | 120 daN | C/B | No | 61 100X30 CB SRP/NL R1.0 |
| 614502 | Ø100×30 mm | 120 daN | C/R | No | 61 100X30 CR SRP/NL R1.0 |
| 604203 | Ø125×35 mm | 220 daN | C/B | No | 60 125X35 CB SRP/NL R1.0 |
| 604503 | Ø125×35 mm | 220 daN | C/R | No | 60 125X35 CR SRP/NL R1.0 |
| 604703 | Ø125×35 mm | 220 daN | C/C 2Z | No | 60 125X35 CC SRP/NL R1.0 |
| 614203 | Ø125×35 mm | 180 daN | C/B | No | 61 125X35 CB SRP/NL R1.0 |
| 614503 | Ø125×35 mm | 180 daN | C/R | No | 61 125X35 CR SRP/NL R1.0 |
| 604204 | Ø150×35 mm | 220 daN | C/B | No | 60 150X35 CB SRP/NL R1.0 |
| 604504 | Ø150×35 mm | 220 daN | C/R | No | 60 150X35 CR SRP/NL R1.0 |
| 614204 | Ø150×35 mm | 220 daN | C/B | No | 61 150X35 CB SRP/NL R1.0 |
| 614504 | Ø150×35 mm | 220 daN | C/R | No | 61 150X35 CR SRP/NL R1.0 |
| 604211 | Ø150×45 mm | 300 daN | C/B | No | 60 150X45 CB SRP/NL R2.0 |
| 604511 | Ø150×45 mm | 300 daN | C/R | No | 60 150X45 CR SRP/NL R2.0 |
| 604731 | Ø150×45 mm | 300 daN | C/C 2Z | No | 60 150X45 CC SRP/NL R2.0 |
| 614211 | Ø150×45 mm | 250 daN | C/B | No | 61 150X45 CB SRP/NL R2.0 |
| 614511 | Ø150×45 mm | 250 daN | C/R | No | 61 150X45 CR SRP/NL R2.0 |
| 604710 | Ø160×50 mm | 300 daN | C/C 2Z | No | 60 160X50 CC SRP/NL R2.0 |
| 604206 | Ø200×50 mm | 300 daN | C/B | No | 60 200X50 CB SRP/NL R2.0 |
| 604506 | Ø200×50 mm | 300 daN | C/R | No | 60 200X50 CR SRP/NL R2.0 |
| 604736 | Ø200×50 mm | 300 daN | C/C 2Z | No | This article |
| 614206 | Ø200×50 mm | 300 daN | C/B | No | 61 200X50 CB SRP/NL R2.0 |
| 614506 | Ø200×50 mm | 300 daN | C/R | No | 61 200X50 CR SRP/NL R2.0 |
