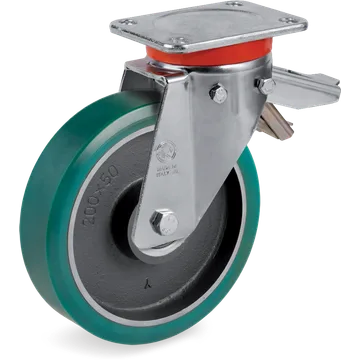

626646Series 62GHTR-Roll polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano TR-Roll, núcleo de hierro fundido mecánico, soportes giratorios extrapesados (EP) con freio
Load capacity: 800 daN

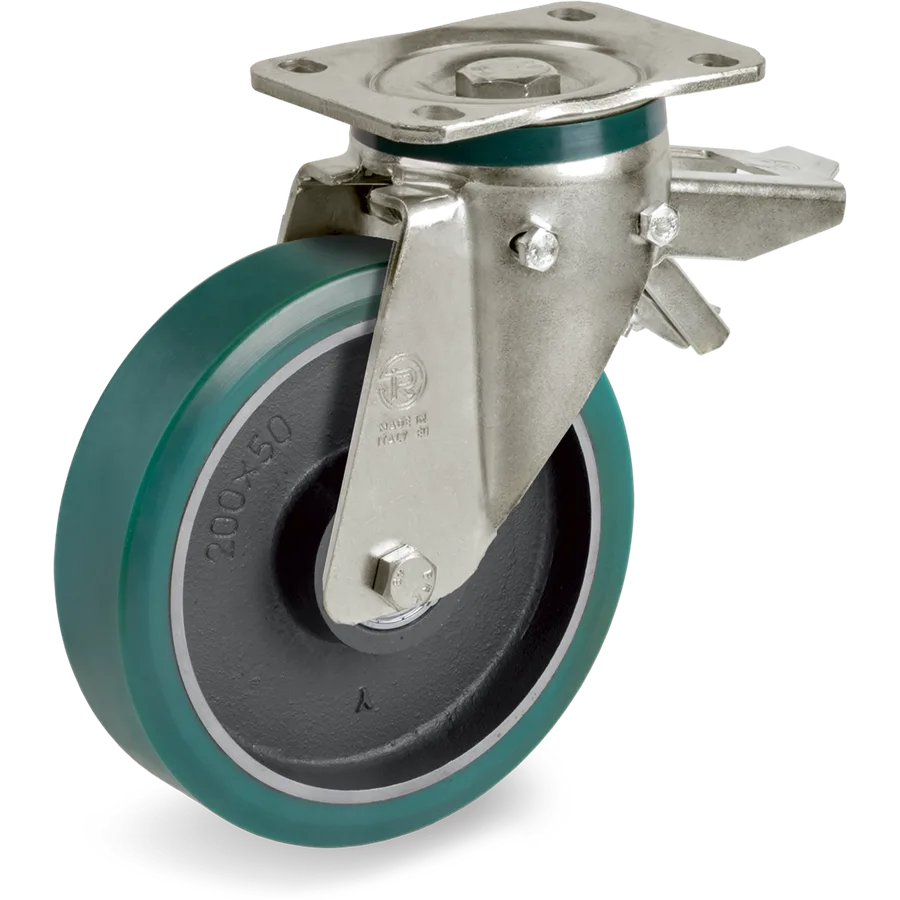

627246Representative image of the familyTR-Roll polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano TR-Roll, núcleo de hierro fundido mecánico, soporte giratorio PT, freno trasero regulable
Tellure description: 62GH 200X50 CC SRP/PT+FP R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 800daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 627246
- Series
- Tellure Rôta 62GH
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 800 daN
- Load at 6 km/h
- 800 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
Ruedas de poliuretano TR-Roll, núcleo de hierro fundido mecánico, soporte giratorio PT, freno trasero regulable
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 627264 | Ø150×50 mm | 550 daN | C/C 2Z | Yes | 62GH 150X50 CC SRP/PT+FP R2.0 |
| 627246 | Ø200×50 mm | 800 daN | C/C 2Z | Yes | This article |
Similar alternatives
- 626646Series 62GH

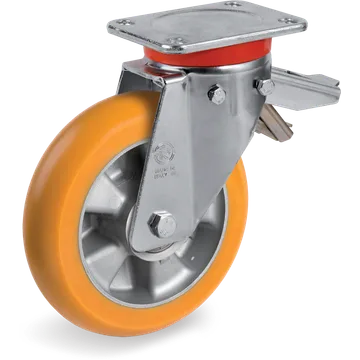

656326Series 65ERTR polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano TR con perfil redondo con núcleo de aluminio, soportes giratorios extrapesados (EP) con freio
Load capacity: 800 daN

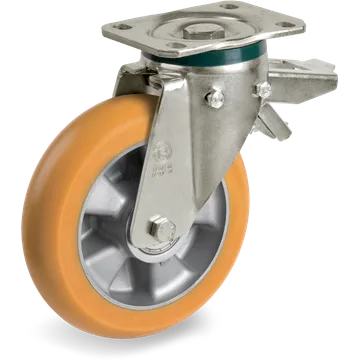

656356Series 65ERTR polyurethane swivel castor Ø200×50 mm with brake
