626646Series 62GHTR-Roll polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano TR-Roll, núcleo de hierro fundido mecánico, soportes giratorios extrapesados (EP) con freio
Load capacity: 800 daN

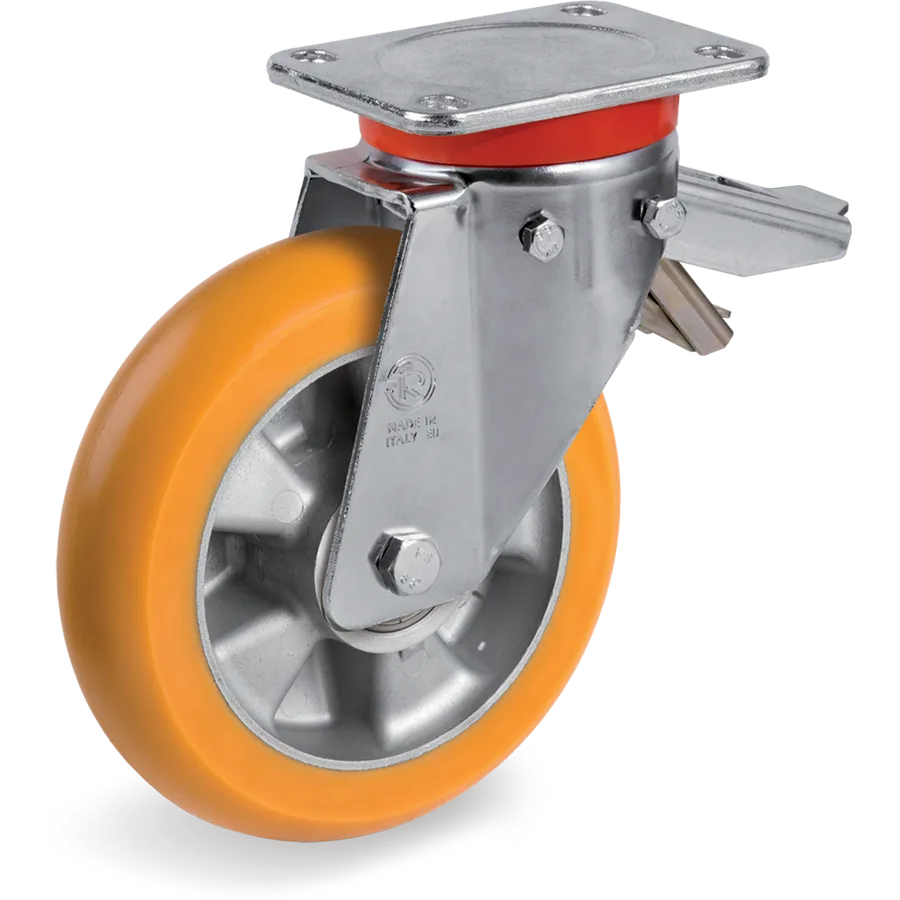

656326Representative image of the familyTR polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano TR con perfil redondo con núcleo de aluminio, soportes giratorios extrapesados (EP) con freio
Tellure description: 65ER 200X50 CC SRP/EP+FP R2.1
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 800daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 656326
- Series
- Tellure Rôta 65ER
- Tread
- TR polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 800 daN
- Load at 6 km/h
- 640 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
Ruedas de poliuretano TR con perfil redondo con núcleo de aluminio, soportes giratorios extrapesados (EP) con freio
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 656324 | Ø160×50 mm | 700 daN | C/C 2Z | Yes | 65ER 160X50 CC SRP/EP+FP R2.1 |
| 656326 | Ø200×50 mm | 800 daN | C/C 2Z | Yes | This article |
