635305Series 63ACVulkollan® swivel castor Ø175×40 mm with brake
Vulkollan® wheels, forged steel centre
Load capacity: 850 daN
636505Representative image of the familyDrawing dimensions
- DDiameter
- 175 mm
- FWidth
- 40 mm
- HOverall height
- 225 mm
- A×BTop plate (outside)
- 135 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 70 mm
- OBrake swing radius
- 126 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

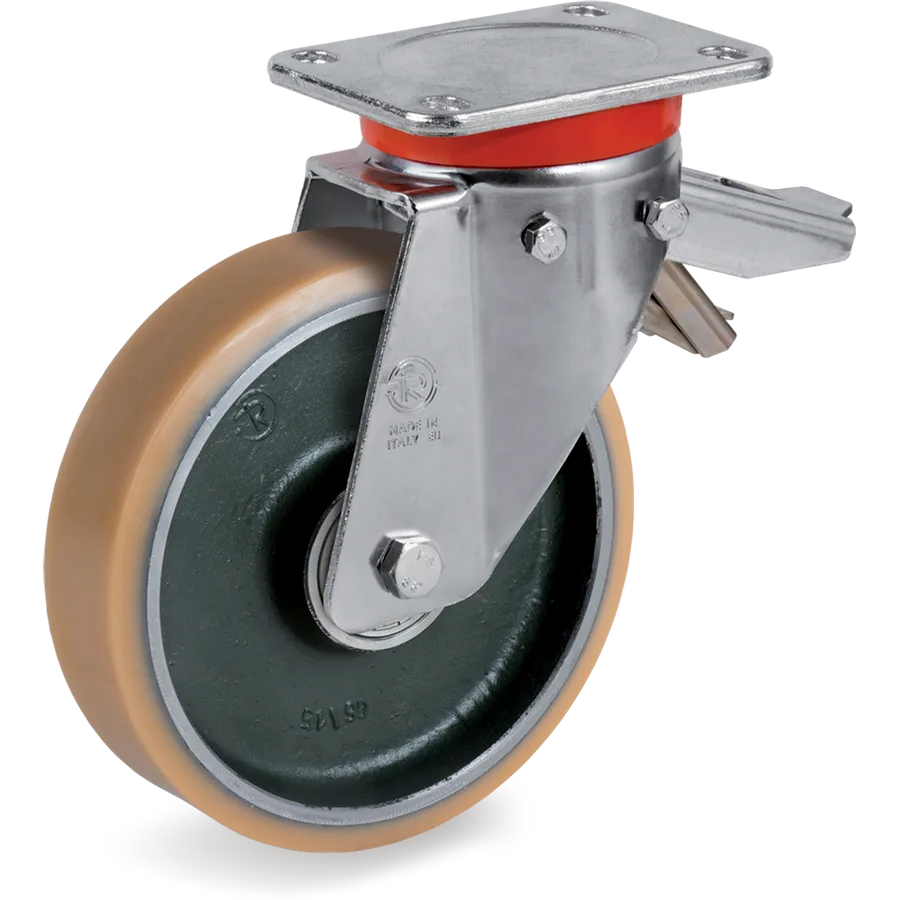

Vulkollan® swivel castor Ø175×40 mm with brake
Vulkollan® wheels, forged steel centre
Tellure description: 63AC 175X40 CC SRP/EP+FP R2.1
- Diameter (D)
- Ø 175mm
- Width (F)
- 40mm
- Load at 4 km/h
- 850daN
- Tread
- Vulkollan®
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 636505
- Series
- Tellure Rôta 63AC
- Tread
- Vulkollan®
- Diameter (D)
- 175 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 850 daN
- Load at 6 km/h
- 680 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 225 mm
- Top plate (A × B)
- 135 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Rear brake
