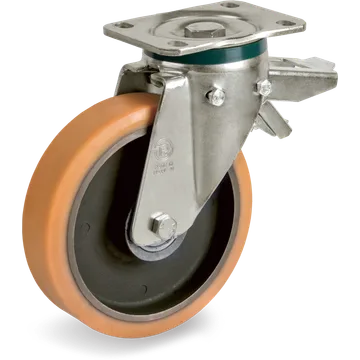

TR polyurethane swivel castor Ø180×50 mm with brake
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
Tellure description: 64 180X50 CC SRP/EP+FP
- Diameter (D)
- Ø 180mm
- Width (F)
- 50mm
- Load at 4 km/h
- 900daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 646655
- Series
- Tellure Rôta 64
- Tread
- TR polyurethane
- Diameter (D)
- 180 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 900 daN
- Load at 6 km/h
- 720 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 228 mm
- Top plate (A × B)
- 135 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
7 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 656914 | Ø150×35 mm | 490 daN | C/C 2Z | Yes | 65GH 150X35 CC SRP/EP+FP R2.1 |
| 646654 | Ø150×50 mm | 750 daN | C/C 2Z | Yes | 64 150X50 CC SRP/EP+FP |
| 646664 | Ø160×50 mm | 750 daN | C/C 2Z | Yes | 64 160X50 CC SRP/EP+FP |
| 656915 | Ø175×35 mm | 650 daN | C/C 2Z | Yes | 65GH 175X35 CC SRP/EP+FP R2.1 |
| 646655 | Ø180×50 mm | 900 daN | C/C 2Z | Yes | This article |
| 656916 | Ø200×45 mm | 1,000 daN | C/C 2Z | Yes | 65GH 200X45 CC SRP/EP+FP R2.1 |
| 646656 | Ø200×50 mm | 1,000 daN | C/C 2Z | Yes | 64 200X50 CC SRP/EP+FP |
Similar alternatives
- 636655Series 63GH

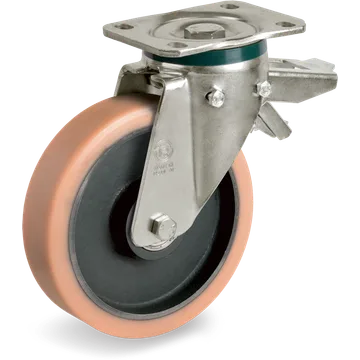

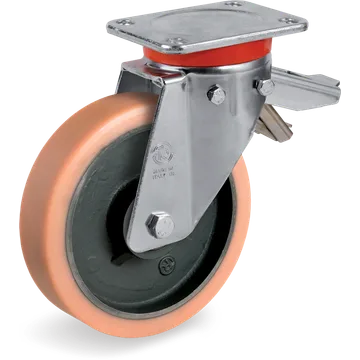

639905Series 63GHVulkollan® swivel castor Ø180×50 mm with brake
