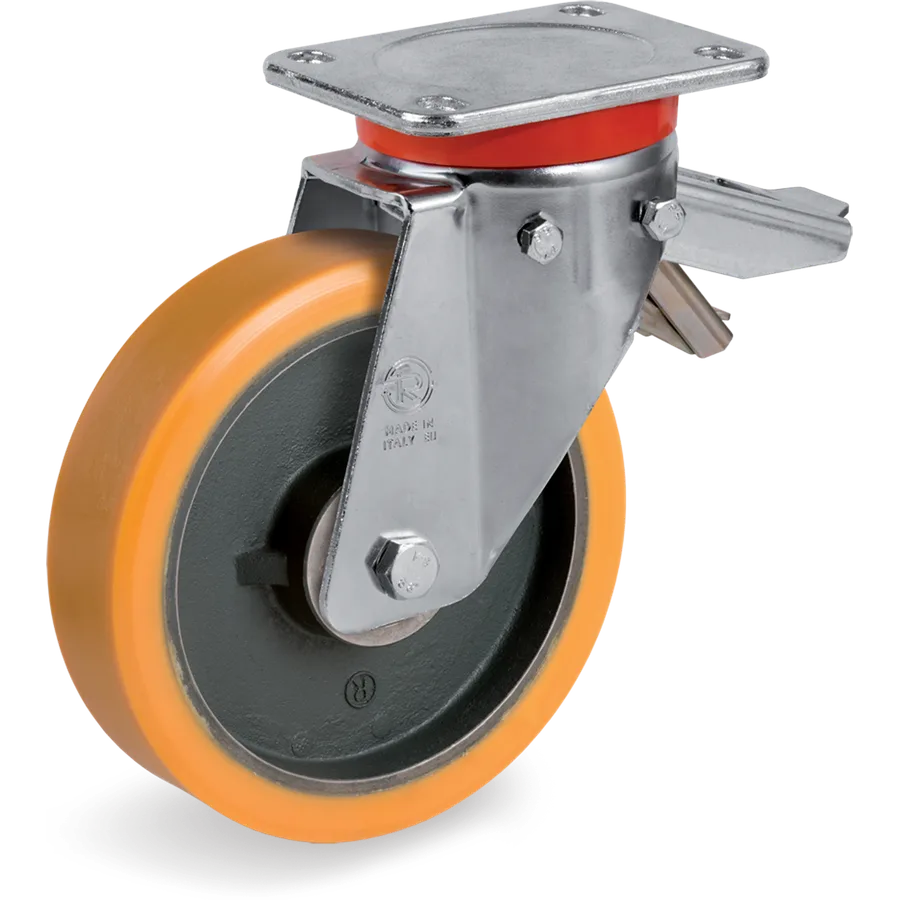

Tellure Rôta 646654 – TR polyurethane swivel castor Ø150×50 mm with brake646654Representative image of the family
Tellure RôtaCode 646654Series 64

TR polyurethane swivel castor Ø150×50 mm with brake

Ruedas en poliuretano TR, núcleo en hierro fundido mecánico, soporte giratorio pletina EP con freno registrable

Tellure description: 64 150X50 CC SRP/EP+FP

Diameter (D)
Ø 150mm
Width (F)
50mm
Load at 4 km/h
750daN
Tread
TR polyurethane

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)

Questions about this article?

926 550 642Contact →

Genuine Tellure Rôta product · Made in Italy

Technical specifications

Wheel

Code
646654
Series
Tellure Rôta 64
Tread
TR polyurethane
Diameter (D)
150 mm
Width (F)
50 mm
Load at 4 km/h
750 daN
Load at 6 km/h
600 daN
Bearing
Ball bearings 2Z

Bracket

Bracket type
Swivel
Fitting
Top plate
Bracket material
Galvanised steel
Brake
Yes
Brake type
Rear brake

Other sizes in this family

Ruedas en poliuretano TR, núcleo en hierro fundido mecánico, soporte giratorio pletina EP con freno registrable

7 articles

CodeØ × FLoad capacityBearingBrakeTellure description
656914Ø150×35 mm490 daNC/C 2ZYes65GH 150X35 CC SRP/EP+FP R2.1
646654Ø150×50 mm750 daNC/C 2ZYesThis article
646664Ø160×50 mm750 daNC/C 2ZYes64 160X50 CC SRP/EP+FP
656915Ø175×35 mm650 daNC/C 2ZYes65GH 175X35 CC SRP/EP+FP R2.1
646655Ø180×50 mm900 daNC/C 2ZYes64 180X50 CC SRP/EP+FP
656916Ø200×45 mm1,000 daNC/C 2ZYes65GH 200X45 CC SRP/EP+FP R2.1
646656Ø200×50 mm1,000 daNC/C 2ZYes64 200X50 CC SRP/EP+FP

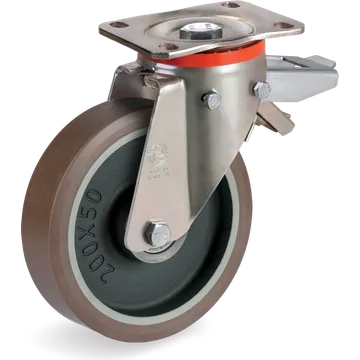

Similar alternatives
