584556Series 58TR-PowerHigh polyurethane swivel castor Ø200×50 mm
Ruedas de poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte giratorio pletina NL
Load capacity: 300 daN

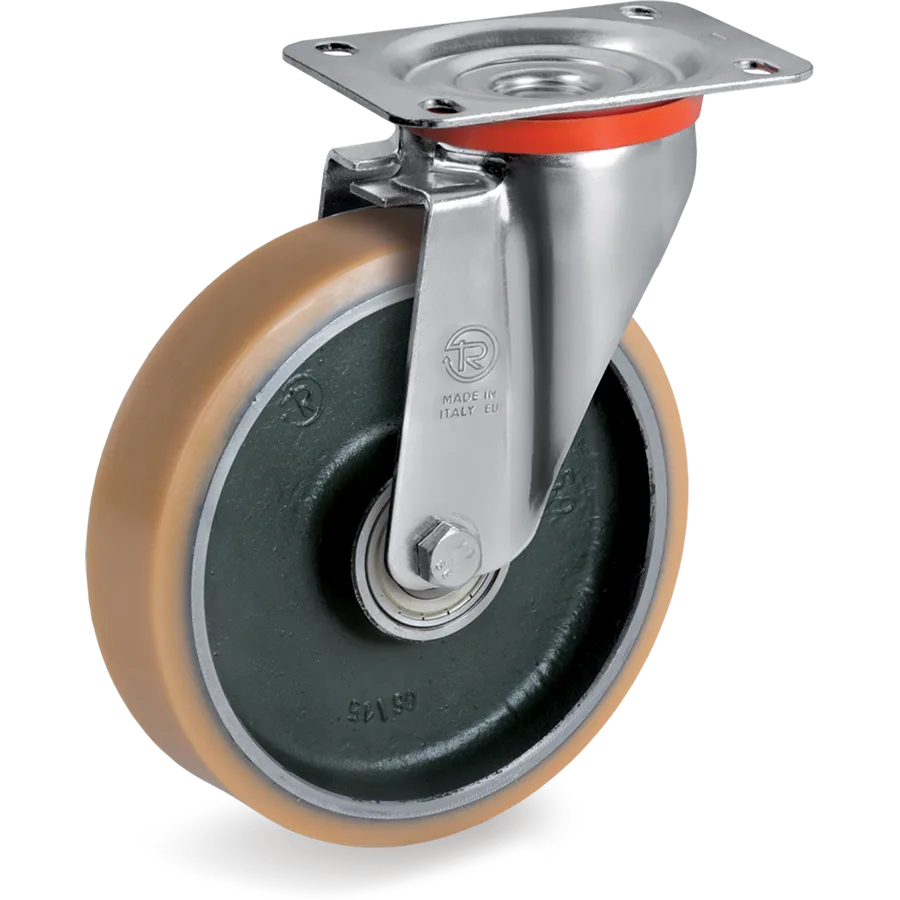

637326Representative image of the familyVulkollan® swivel castor Ø200×50 mm
Ruedas en poliuretano Vulkollan®, núcleo en acero forjado, soporte giratorio pletina NL
Tellure description: 63AC 200X50 CC SRP/NL R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 300daN
- Tread
- Vulkollan®
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 637326
- Series
- Tellure Rôta 63AC
- Tread
- Vulkollan®
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas en poliuretano Vulkollan®, núcleo en acero forjado, soporte giratorio pletina NL
6 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 637322 | Ø100×30 mm | 200 daN | C/C 2Z | No | 63AC 100X30 CC SRP/NL R1.0 |
| 637323 | Ø125×40 mm | 220 daN | C/C 2Z | No | 63AC 125X40 CC SRP/NL R1.0 |
| 637304 | Ø150×40 mm | 220 daN | C/C 2Z | No | 63AC 150X40 CC SRP/NLL R1.0 |
| 637324 | Ø150×40 mm | 300 daN | C/C 2Z | No | 63AC 150X40 CC SRP/NL R2.0 |
| 637325 | Ø175×40 mm | 300 daN | C/C 2Z | No | 63AC 175X40 CC SRP/NL R2.0 |
| 637326 | Ø200×50 mm | 300 daN | C/C 2Z | No | This article |
Similar alternatives
- 584556Series 58
604206Series 60Thermoplastic polyurethane swivel castor Ø200×50 mm
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio pletina NL
Load capacity: 300 daN
604336Series 60Thermoplastic polyurethane swivel castor Ø200×50 mm
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio taladro pasador NL
Load capacity: 300 daN
606106Series 60Thermoplastic polyurethane swivel castor Ø200×50 mm
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio con espiga NL
Load capacity: 300 daN
