584556Series 58TR-PowerHigh polyurethane swivel castor Ø200×50 mm
TR-PowerHigh polyurethane wheels, machined cast iron centre
Load capacity: 300 daN
656426Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 45 mm
- HOverall height
- 236 mm
- GPlate diameter
- 102 mm
- GGThrough-hole diameter
- 20 mm
- ESwivel offset
- 56 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

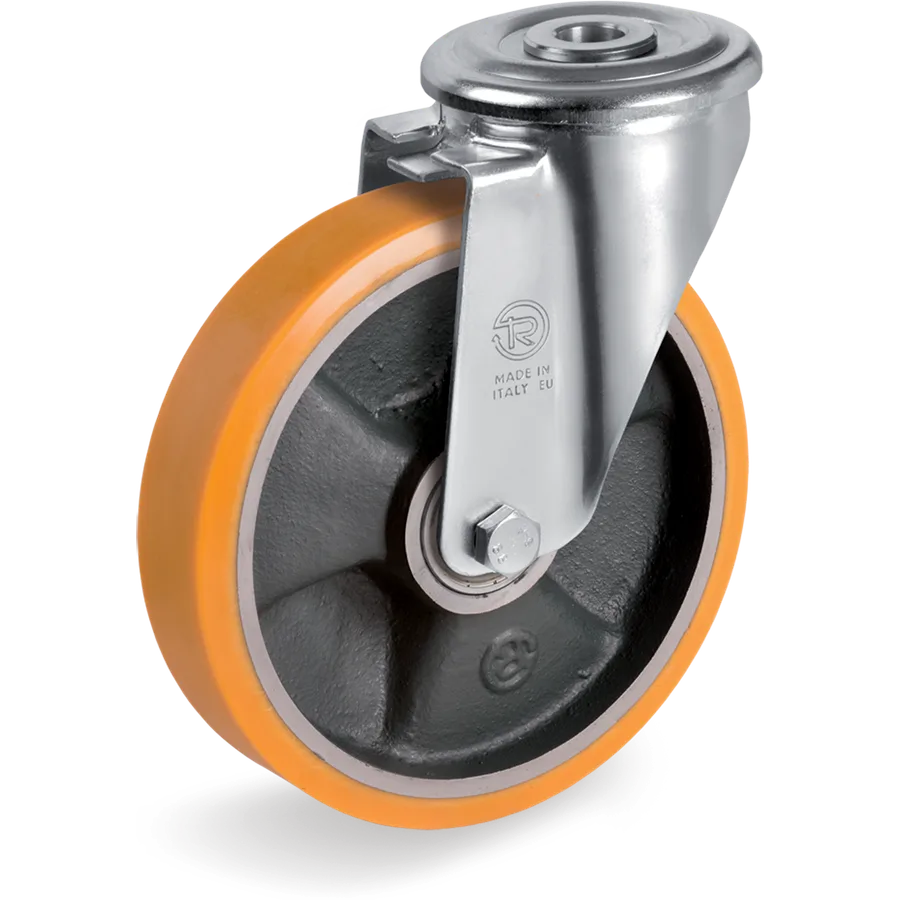

TR polyurethane swivel castor Ø200×45 mm
TR polyurethane wheels, machined cast iron centre
Tellure description: 65GH 200X45 CC SRF/NL C2
- Diameter (D)
- Ø 200mm
- Width (F)
- 45mm
- Load at 4 km/h
- 300daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 656426
- Series
- Tellure Rôta 65GH
- Tread
- TR polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 45 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 236 mm
- Fitting
- Bolt hole
- Bracket material
- Galvanised steel
- Brake
- No
