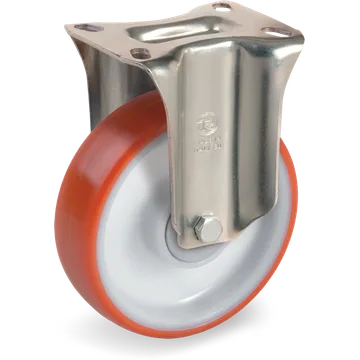

608223Series 60Thermoplastic polyurethane fixed castor Ø125×35 mm
Injected polyurethane wheels, polyamide 6 centre
Load capacity: 250 daN
668303Representative image of the familyDrawing dimensions
- DDiameter
- 125 mm
- FWidth
- 30 mm
- HOverall height
- 161 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

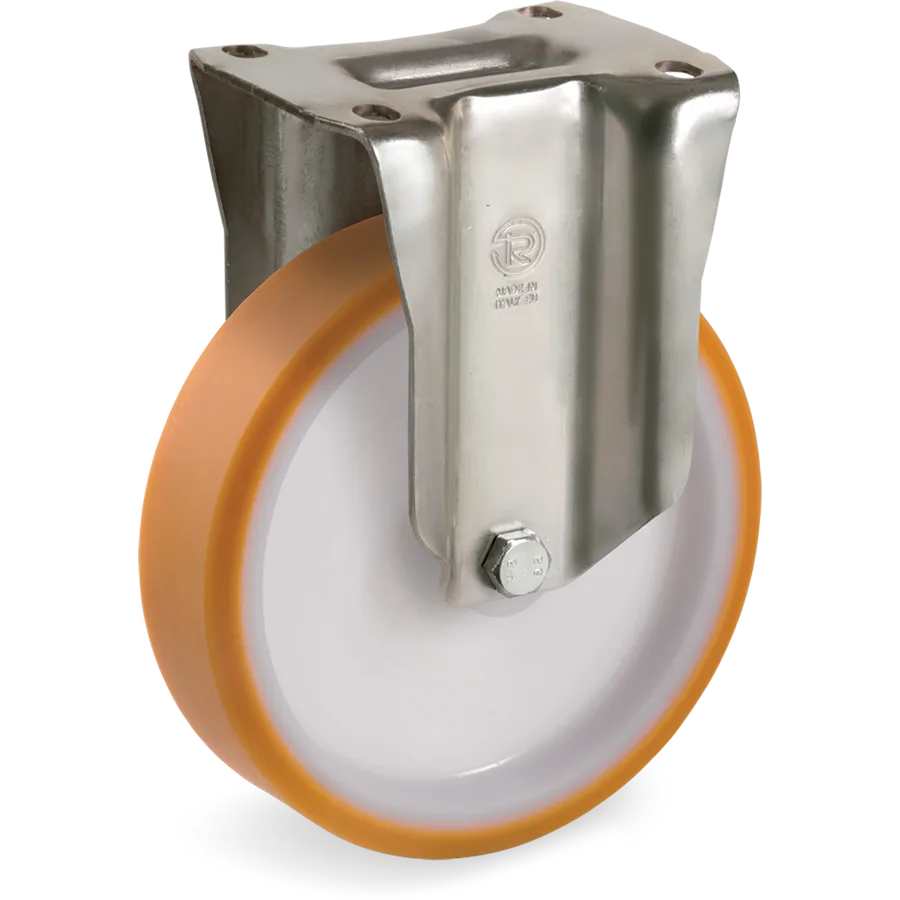

TR polyurethane fixed castor Ø125×30 mm
TR polyurethane wheels, polyamide 6 centre
Tellure description: 66 125X30 CR SF/P R1.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 30mm
- Load at 4 km/h
- 250daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 668303
- Series
- Tellure Rôta 66
- Tread
- TR polyurethane
- Diameter (D)
- 125 mm
- Width (F)
- 30 mm
- Load at 4 km/h
- 250 daN
- Bearing
- Roller bearing
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 161 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
TR polyurethane wheels, polyamide 6 centre
10 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 668102 | Ø100×30 mm | 200 daN | C/B | No | 66 100X30 CB SF/P R1.0 |
| 668302 | Ø100×30 mm | 200 daN | C/R | No | 66 100X30 CR SF/P R1.0 |
| 668103 | Ø125×30 mm | 250 daN | C/B | No | 66 125X30 CB SF/P R1.0 |
| 668303 | Ø125×30 mm | 250 daN | C/R | No | This article |
| 668504 | Ø150×40 mm | 400 daN | C/R | No | 66 150X40 CR SF/P R2.0 |
| 668604 | Ø150×40 mm | 400 daN | C/B | No | 66 150X40 CB SF/P R2.0 |
| 668505 | Ø175×40 mm | 470 daN | C/R | No | 66 175X45 CR SF/P R2.0 |
| 668605 | Ø175×40 mm | 470 daN | C/B | No | 66 175X45 CB SF/P R2.0 |
| 668506 | Ø200×50 mm | 600 daN | C/R | No | 66 200X50 CR SF/P R2.0 |
| 668606 | Ø200×50 mm | 600 daN | C/B | No | 66 200X50 CB SF/P R2.0 |
Similar alternatives
- 608223Series 60

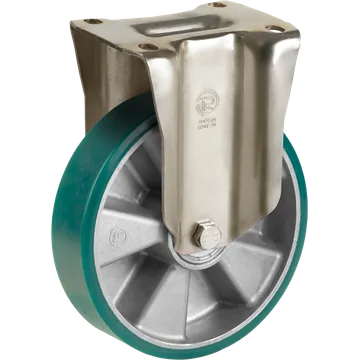

628543Series 62BSTR-Roll polyurethane fixed castor Ø125×35 mm
Low-profile TR-Roll polyurethane wheels, aluminium centre
Load capacity: 250 daN

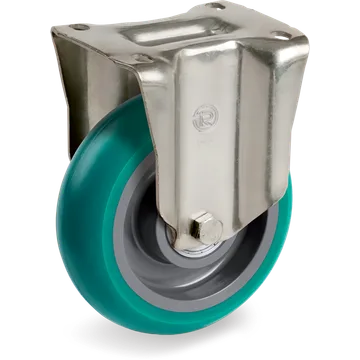

629413Series 62NYERTR-Roll polyurethane fixed castor Ø125×40 mm
Round-profile TR-Roll polyurethane wheels, polyamide 6 centre
Load capacity: 250 daN

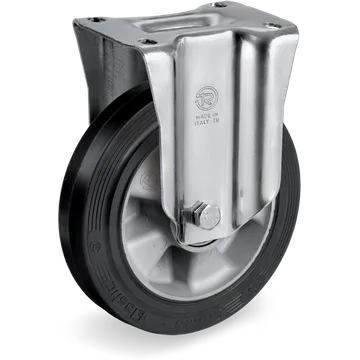

726213Series 72ALElastic rubber fixed castor Ø125×50 mm
