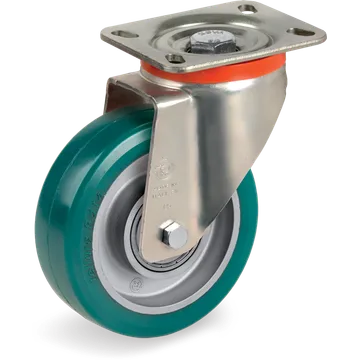

627602Series 62ALTR-Roll polyurethane swivel castor Ø100×40 mm
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina P
Load capacity: 300 daN
687502Representative image of the familyPolyamide 6 swivel castor Ø100×30 mm
Ruedas monobloque en poliamida 6, soporte giratorio pletina P
Tellure description: 68 100X30 CB SRP/P R1.0
- Diameter (D)
- Ø 100mm
- Width (F)
- 30mm
- Load at 4 km/h
- 300daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 687502
- Series
- Tellure Rôta 68
- Tread
- Polyamide 6
- Diameter (D)
- 100 mm
- Width (F)
- 30 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas monobloque en poliamida 6, soporte giratorio pletina P
11 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 687502 | Ø100×30 mm | 300 daN | C/B | No | This article |
| 687602 | Ø100×30 mm | 300 daN | C/R | No | 68 100X30 CR SRP/P R1.0 |
| 687503 | Ø125×38 mm | 350 daN | C/B | No | 68 125X38 CB SRP/P R1.0 |
| 687603 | Ø125×38 mm | 350 daN | C/R | No | 68 125X38 CR SRP/P R1.0 |
| 687504 | Ø150×45 mm | 500 daN | C/B | No | 68 150X45 CB SRP/P R2.0 |
| 687604 | Ø150×45 mm | 500 daN | C/R | No | 68 150X45 CR SRP/P R2.0 |
| 687505 | Ø175×45 mm | 630 daN | C/B | No | 68 175X45 CB SRP/P R2.0 |
| 687605 | Ø175×45 mm | 630 daN | C/R | No | 68 175X45 CR SRP/P R2.0 |
| 684966 | Ø200×50 mm | 730 daN | C/C 2Z | No | 68 200X50 CC SRP/P R2.0 |
| 687506 | Ø200×50 mm | 730 daN | C/B | No | 68 200X50 CB SRP/P R2.0 |
| 687606 | Ø200×50 mm | 730 daN | C/R | No | 68 200X50 CR SRP/P R2.0 |
Similar alternatives
- 627602Series 62AL
585852Series 58GHTR-PowerHigh polyurethane swivel castor Ø100×38 mm
Ruedas en poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte giratorio pletina P
Load capacity: 350 daN
587602Series 58ALTR-PowerHigh polyurethane swivel castor Ø100×30 mm
Ruedas en poliuretano TR-PowerHigh, núcleo en aluminio, soporte giratorio pletina P
Load capacity: 250 daN
587852Series 58TR-PowerHigh polyurethane swivel castor Ø100×38 mm
Ruedas de poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte giratorio pletina EP
Load capacity: 350 daN
