726205Series 72ALElastic rubber fixed castor Ø180×50 mm
Ruedas en goma "Sigma Elastic", núcleo en aluminio, soporte fijo NL-M
Load capacity: 350 daN

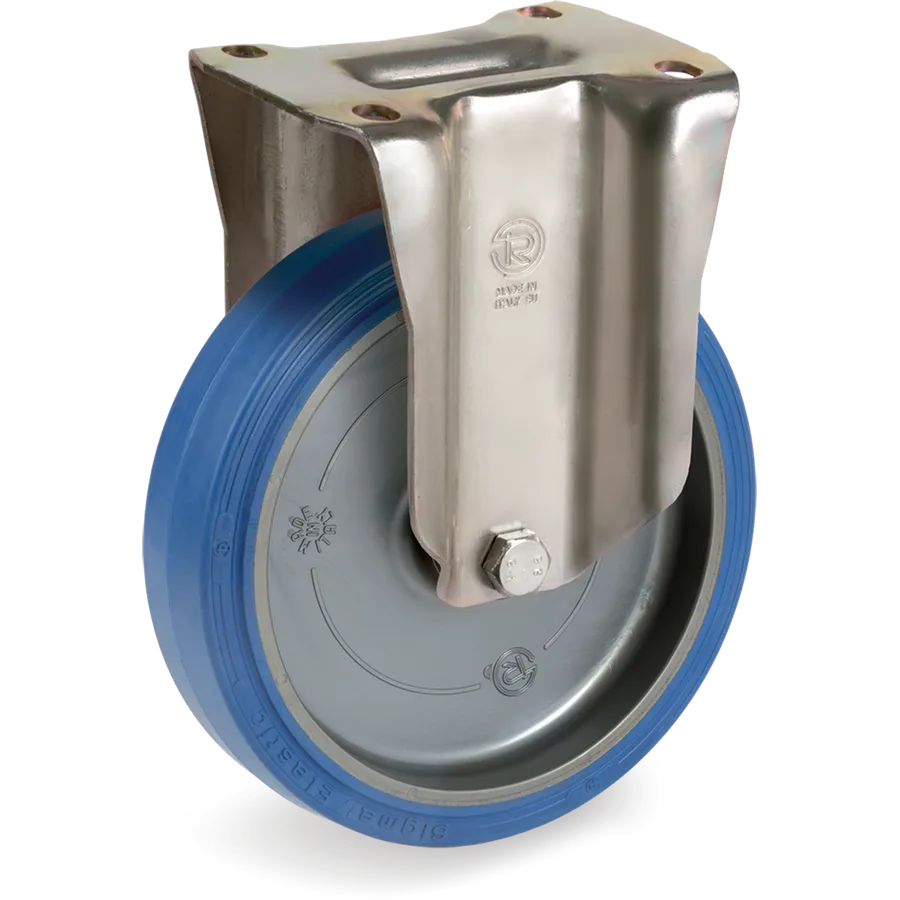

736105Representative image of the familyElastic rubber fixed castor Ø180×50 mm
Ruedas en goma "Sigma Elastic", núcleo en poliamida 6, soporte fijo P
Tellure description: 73 180X50 CB SF/P R2.0
- Diameter (D)
- Ø 180mm
- Width (F)
- 50mm
- Load at 4 km/h
- 350daN
- Tread
- Elastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 736105
- Series
- Tellure Rôta 73
- Tread
- Elastic rubber
- Diameter (D)
- 180 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 350 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas en goma "Sigma Elastic", núcleo en poliamida 6, soporte fijo P
15 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 736102 | Ø100×40 mm | 150 daN | C/B | No | 73 100X40 CB SF/P R1.0 |
| 736402 | Ø100×40 mm | 150 daN | C/R | No | 73 100X40 CR SF/P R1.0 |
| 736702 | Ø100×40 mm | 150 daN | C/C 2Z | No | 73 100X40 CC SF/P R1.0 |
| 736103 | Ø125×40 mm | 230 daN | C/B | No | 73 125X40 CB SF/P R1.0 |
| 736403 | Ø125×40 mm | 230 daN | C/R | No | 73 125X40 CR SF/P R1.0 |
| 736703 | Ø125×40 mm | 230 daN | C/C 2Z | No | 73 125X40 CC SF/P R1.0 |
| 736104 | Ø160×50 mm | 300 daN | C/B | No | 73 160X50 CB SF/P R2.0 |
| 736404 | Ø160×50 mm | 300 daN | C/R | No | 73 160X50 CR SF/P R2.0 |
| 736704 | Ø160×50 mm | 300 daN | C/C 2Z | No | 73 160X50 CC SF/P R2.0 |
| 736105 | Ø180×50 mm | 350 daN | C/B | No | This article |
| 736405 | Ø180×50 mm | 350 daN | C/R | No | 73 180X50 CR SF/P R2.0 |
| 736705 | Ø180×50 mm | 350 daN | C/C 2Z | No | 73 180X50 CC SF/P R2.0 |
| 736106 | Ø200×50 mm | 450 daN | C/B | No | 73 200X50 CB SF/P R2.0 |
| 736406 | Ø200×50 mm | 450 daN | C/R | No | 73 200X50 CR SF/P R2.0 |
| 736706 | Ø200×50 mm | 450 daN | C/C 2Z | No | 73 200X50 CC SF/P R2.0 |
