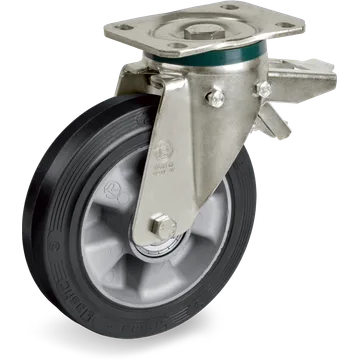

727205Series 72ALElastic rubber swivel castor Ø180×50 mm with brake
Sigma Elastic rubber wheels, aluminium centre
Load capacity: 350 daN
736805Representative image of the familyDrawing dimensions
- DDiameter
- 180 mm
- FWidth
- 50 mm
- HOverall height
- 228 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 70 mm
- OBrake swing radius
- 126 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
Elastic rubber swivel castor Ø180×50 mm with brake
Sigma Elastic rubber wheels, polyamide 6 centre
Tellure description: 73 180X50 CC SRP/P+FP R2.0
- Diameter (D)
- Ø 180mm
- Width (F)
- 50mm
- Load at 4 km/h
- 350daN
- Tread
- Elastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 736805
- Series
- Tellure Rôta 73
- Tread
- Elastic rubber
- Diameter (D)
- 180 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 350 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 228 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
Sigma Elastic rubber wheels, polyamide 6 centre
9 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 736204 | Ø160×50 mm | 300 daN | C/B | Yes | 73 160X50 CB SRP/P+FP R2.0 |
| 736504 | Ø160×50 mm | 300 daN | C/R | Yes | 73 160X50 CR SRP/P+FP R2.0 |
| 736804 | Ø160×50 mm | 300 daN | C/C 2Z | Yes | 73 160X50 CC SRP/P+FP R2.0 |
| 736205 | Ø180×50 mm | 350 daN | C/B | Yes | 73 180X50 CB SRP/P+FP R2.0 |
| 736505 | Ø180×50 mm | 350 daN | C/R | Yes | 73 180X50 CR SRP/P+FP R2.0 |
| 736805 | Ø180×50 mm | 350 daN | C/C 2Z | Yes | This article |
| 736206 | Ø200×50 mm | 450 daN | C/B | Yes | 73 200X50 CB SRP/P+FP R2.0 |
| 736506 | Ø200×50 mm | 450 daN | C/R | Yes | 73 200X50 CR SRP/P+FP R2.0 |
| 736806 | Ø200×50 mm | 450 daN | C/C 2Z | Yes | 73 200X50 CC SRP/P+FP R2.0 |
