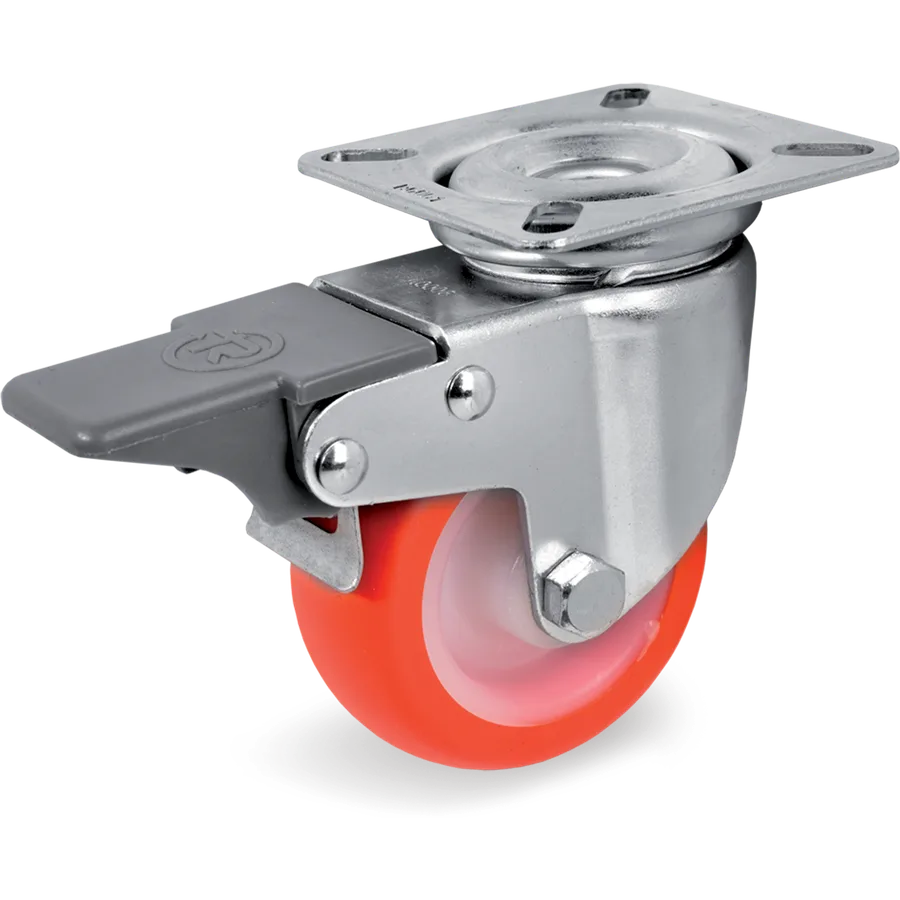

Tellure Rôta 368102 – Thermoplastic polyurethane swivel castor Ø50×18 mm with brake368102Representative image of the family

Drawing dimensions

DDiameter
50 mm
FWidth
18 mm
HOverall height
66 mm
A×BTop plate (outside)
55 × 55 mm
AA×BBBolt hole spacing
40 × 40 mm
EEBolt hole diameter
6 mm
ESwivel offset
22 mm
OBrake swing radius
78 mm

Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

Tellure RôtaCode 368102Series 36

Thermoplastic polyurethane swivel castor Ø50×18 mm with brake

Injected polyurethane castors, polyamide 6 centre, for catering

Tellure description: 36 50X18 CB SRP+FA S2.0

Diameter (D)
Ø 50mm
Width (F)
18mm
Tread
Thermoplastic polyurethane

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)

Questions about this article?

926 550 642Contact →

Genuine Tellure Rôta product · Made in Italy

Technical specifications

Wheel

Code
368102
Series
Tellure Rôta 36
Tread
Thermoplastic polyurethane
Diameter (D)
50 mm
Width (F)
18 mm
Bearing
Plain bore

Bracket

Bracket type
Swivel
Overall height (H)
66 mm
Top plate (A × B)
55 × 55 mm
Bolt hole spacing (AA × BB)
40 × 40 mm
Fitting
Top plate
Bracket material
Galvanised steel
Brake
Yes
Brake type
Front brake

Other sizes in this family

Injected polyurethane castors, polyamide 6 centre, for catering

4 articles

CodeØ × FLoad capacityBearingBrakeTellure description
368101Ø40×18 mm—C/BYes36 40X18 CB SRP+FA S1.0
368102Ø50×18 mm—C/BYesThis article
368103Ø60×25 mm—C/BYes36 60X25 CB SRP+FA S3.0
368104Ø75×23 mm—C/BYes36 75X23 CB SRP+FA S3.0
