325103Series 32Polyamide 6 fixed castor Ø60×22 mm
Polyamide 6 castors for catering and light equipment
Load: on request
385202NXRepresentative image of the familyDrawing dimensions
- DDiameter
- 60 mm
- FWidth
- 25 mm
- HOverall height
- 83 mm
- A×BTop plate (outside)
- 60 × 67 mm
- AA×BBBolt hole spacing
- 45 × 45 mm
- EEBolt hole diameter
- 6 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

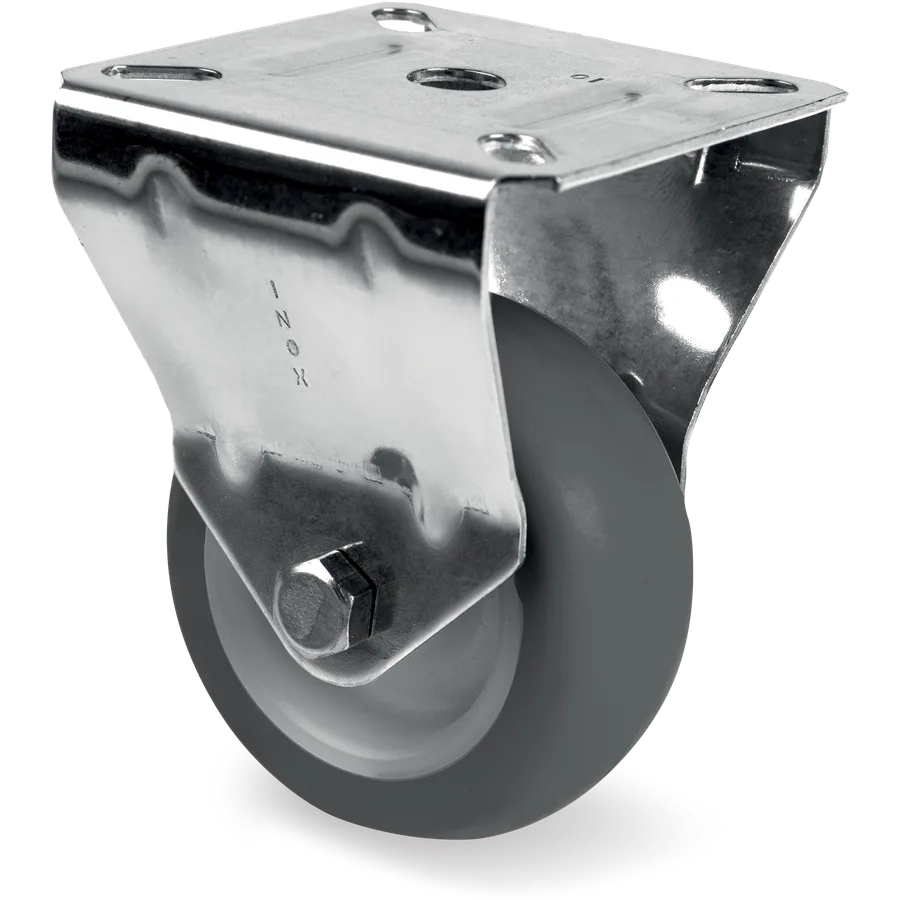

Thermoplastic rubber fixed castor Ø60×25 mm
Thermoplastic rubber castors with stainless steel bracket
Tellure description: 38NX 60X25 CB SF S3.F
- Diameter (D)
- Ø 60mm
- Width (F)
- 25mm
- Tread
- Thermoplastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 385202NX
- Series
- Tellure Rôta 38NX
- Tread
- Thermoplastic rubber
- Diameter (D)
- 60 mm
- Width (F)
- 25 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 83 mm
- Top plate (A × B)
- 60 × 67 mm
- Bolt hole spacing (AA × BB)
- 45 × 45 mm
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- No
