Tellure Rôta · Catering and furniture

Series 38NX

Thermoplastic rubber castors with stainless steel bracket

Series 38NX

Articles in this series

Every code in the series, grouped by wheel and bracket type. Select a code to see its datasheet, drawing and quote.

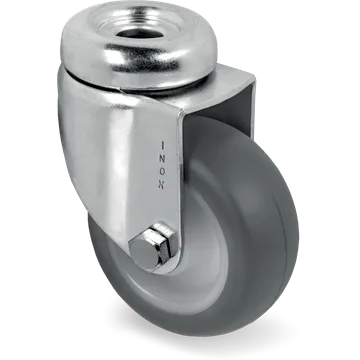

Thermoplastic rubber castors with stainless steel bracket — swivel castor, bolt hole, stainless steel3 articles · Ø50–75 mm

Code	Size	Load (daN)	Bearing	Brake
383211NX	Ø50×24 mm	—	Plain bore	No
383202NX	Ø60×25 mm	—	Plain bore	No
383303NX	Ø75×23 mm	—	Plain bore	No

Thermoplastic rubber castors with stainless steel bracket — swivel castor, top plate, stainless steel3 articles · Ø50–75 mm

Code	Size	Load (daN)	Bearing	Brake
384211NX	Ø50×24 mm	—	Plain bore	No
384202NX	Ø60×25 mm	—	Plain bore	No
384303NX	Ø75×23 mm	—	Plain bore	No

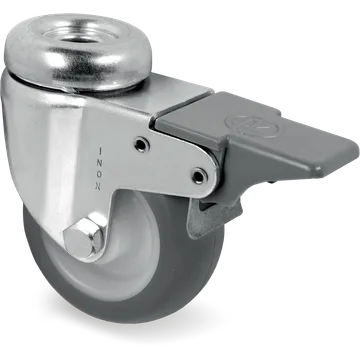

Thermoplastic rubber castors with stainless steel bracket — swivel castor, bolt hole, front brake, stainless steel3 articles · Ø50–75 mm

Code	Size	Load (daN)	Bearing	Brake
387211NX	Ø50×24 mm	—	Plain bore	Yes
387202NX	Ø60×25 mm	—	Plain bore	Yes
387303NX	Ø75×23 mm	—	Plain bore	Yes

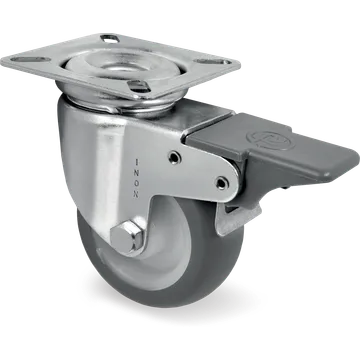

Thermoplastic rubber castors with stainless steel bracket — swivel castor, top plate, front brake, stainless steel3 articles · Ø50–75 mm

Code	Size	Load (daN)	Bearing	Brake
388211NX	Ø50×24 mm	—	Plain bore	Yes
388202NX	Ø60×25 mm	—	Plain bore	Yes
388303NX	Ø75×23 mm	—	Plain bore	Yes

Thermoplastic rubber castors with stainless steel bracket — fixed castor, top plate, stainless steel3 articles · Ø50–75 mm

Code	Size	Load (daN)	Bearing	Brake
385211NX	Ø50×24 mm	—	Plain bore	No
385202NX	Ø60×25 mm	—	Plain bore	No
385303NX	Ø75×23 mm	—	Plain bore	No

Send it over and we will prepare an offer with availability and lead times, during business hours and as soon as possible.
