342103Series 34GRYPolyamide 6 swivel castor Ø60×42 mm with brake
Ruedas para muebles gemelas en poliamida 6 con soporte giratorio pletina

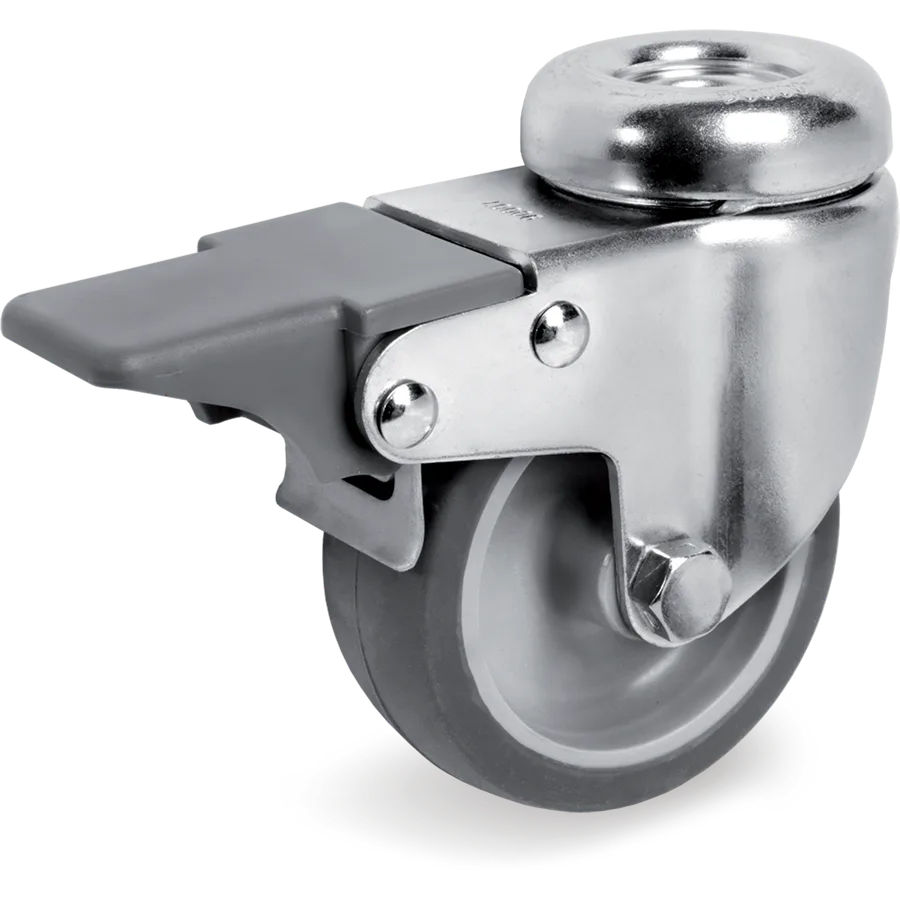

387202Representative image of the familyThermoplastic rubber swivel castor Ø60×25 mm with brake
Ruedas de Goma termoplástica, nucleo de polipropileno, soporte giratorio con taladro pasador con freno delantero
Tellure description: 38 60X25 CB SRF 12+FA
- Diameter (D)
- Ø 60mm
- Width (F)
- 25mm
- Tread
- Thermoplastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 387202
- Series
- Tellure Rôta 38
- Tread
- Thermoplastic rubber
- Diameter (D)
- 60 mm
- Width (F)
- 25 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Fitting
- Bolt hole
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Ruedas de Goma termoplástica, nucleo de polipropileno, soporte giratorio con taladro pasador con freno delantero
8 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 387200 | Ø40×18 mm | — | C/B | Yes | 38 40X18 CB SRF 10+FA |
| 387201 | Ø50×18 mm | — | C/B | Yes | 38 50X18 CB SRF 10+FA |
| 387202 | Ø60×25 mm | — | C/B | Yes | This article |
| 387212 | Ø60×25 mm | — | C/B | Yes | 38 60X25 CB SRF 10+FA |
| 387303 | Ø75×23 mm | — | C/B | Yes | 38 75X23 CB SRF 12+FA |
| 387313 | Ø75×23 mm | — | C/B | Yes | 38 75X23 CB SRF 10+FA |
| 387203 | Ø80×24 mm | — | C/B | Yes | 38 80X24 CB SRF 12+FA |
| 387213 | Ø80×24 mm | — | C/B | Yes | 38 80X24 CB SRF 10+FA |
Similar alternatives
- 342103Series 34GRY
342303Series 34GRYPolyamide 6 swivel castor Ø60×42 mm with brake
Ruedas para muebles gemelas en poliamida 6 con soporte giratorio espiga
367103Series 36Thermoplastic polyurethane swivel castor Ø60×25 mm with brake
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio taladro pasador freno delantero
367103NXSeries 36NXThermoplastic polyurethane swivel castor Ø60×25 mm with brake
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio con taladro pasador en acero inoxidable con freno delantero.
