342103Series 34GRYPolyamide 6 swivel castor Ø60×42 mm with brake
Twin polyamide 6 furniture castors, grey
Load: on request
388202Representative image of the familyDrawing dimensions
- DDiameter
- 60 mm
- FWidth
- 25 mm
- HOverall height
- 83 mm
- A×BTop plate (outside)
- 60 × 60 mm
- AA×BBBolt hole spacing
- 45 × 45 mm
- EEBolt hole diameter
- 6 mm
- ESwivel offset
- 21 mm
- OBrake swing radius
- 84 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

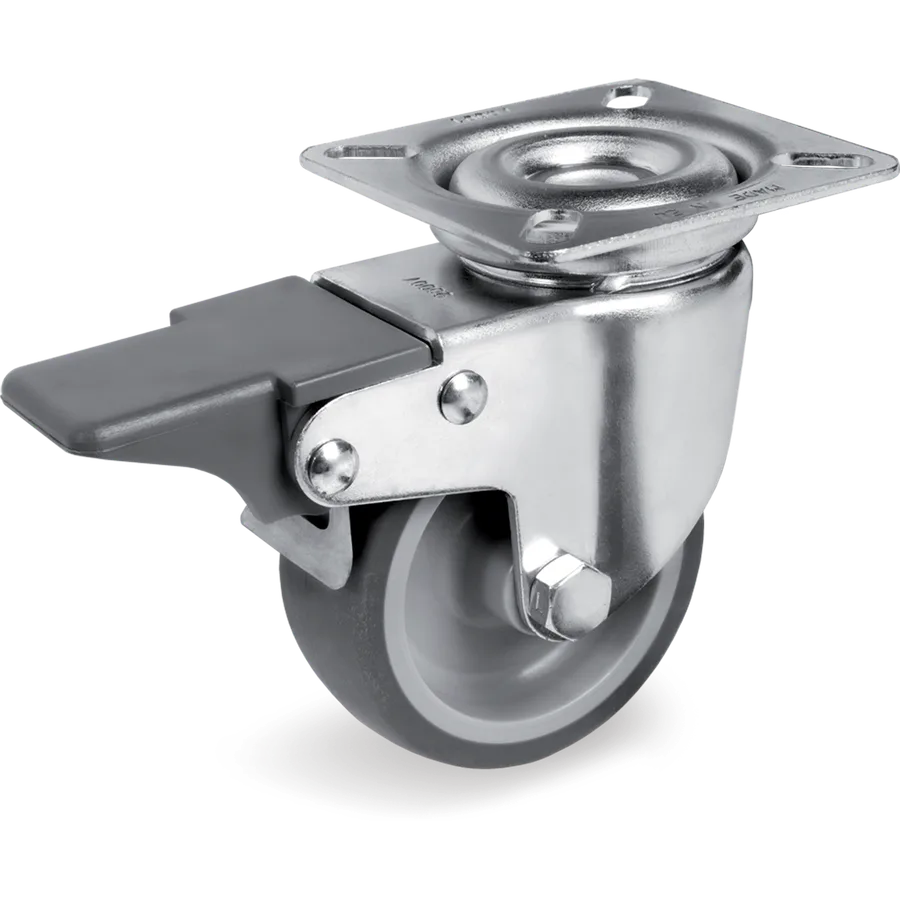

Thermoplastic rubber swivel castor Ø60×25 mm with brake
Thermoplastic rubber castors, polypropylene centre, for catering
Tellure description: 38 60X25 CB SRP+FA S3.0
- Diameter (D)
- Ø 60mm
- Width (F)
- 25mm
- Tread
- Thermoplastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 388202
- Series
- Tellure Rôta 38
- Tread
- Thermoplastic rubber
- Diameter (D)
- 60 mm
- Width (F)
- 25 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 83 mm
- Top plate (A × B)
- 60 × 60 mm
- Bolt hole spacing (AA × BB)
- 45 × 45 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
