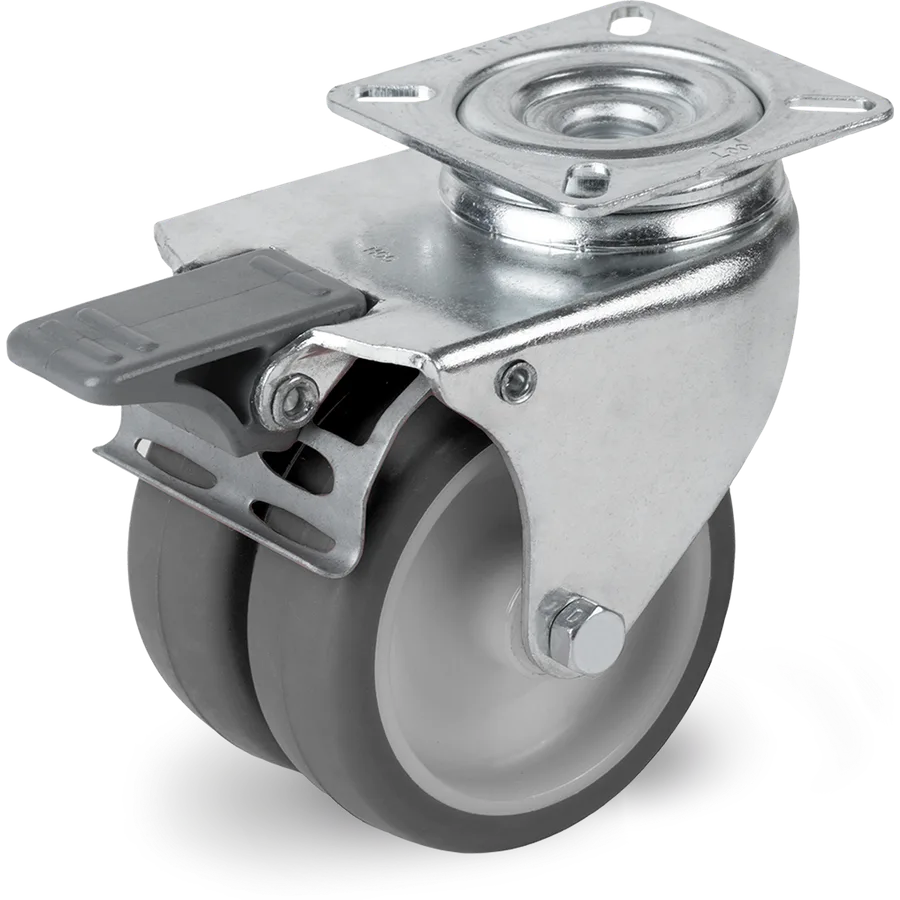

Tellure Rôta 388402 – Thermoplastic rubber swivel castor Ø50 mm with brake388402Representative image of the family

Drawing dimensions

DDiameter
50 mm
FWidth
18 + 18 mm
HOverall height
71 mm
A×BTop plate (outside)
60 × 60 mm
AA×BBBolt hole spacing
45 × 45 mm
EEBolt hole diameter
6 mm
ESwivel offset
28 mm
OBrake swing radius
84 mm

Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

Tellure RôtaCode 388402Series 38

Thermoplastic rubber swivel castor Ø50 mm with brake

Thermoplastic rubber castors, polypropylene centre, for catering

Tellure description: 38 50X18+18 CB SRP+FA S3.0

Diameter (D)
Ø 50mm
Tread
Thermoplastic rubber

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)

Questions about this article?

926 550 642Contact →

Genuine Tellure Rôta product · Made in Italy

Technical specifications

Wheel

Code
388402
Series
Tellure Rôta 38
Tread
Thermoplastic rubber
Diameter (D)
50 mm
Bearing
Plain bore

Bracket

Bracket type
Swivel
Overall height (H)
71 mm
Top plate (A × B)
60 × 60 mm
Bolt hole spacing (AA × BB)
45 × 45 mm
Fitting
Top plate
Bracket material
Galvanised steel
Brake
Yes
Brake type
Front brake

Other sizes in this family

Thermoplastic rubber castors, polypropylene centre, for catering

2 articles

CodeØ × FLoad capacityBearingBrakeTellure description
388402Ø50 mm—C/BYesThis article
388414Ø75 mm—C/BYes38 75X23+23 CB SRP+FA S3.0
