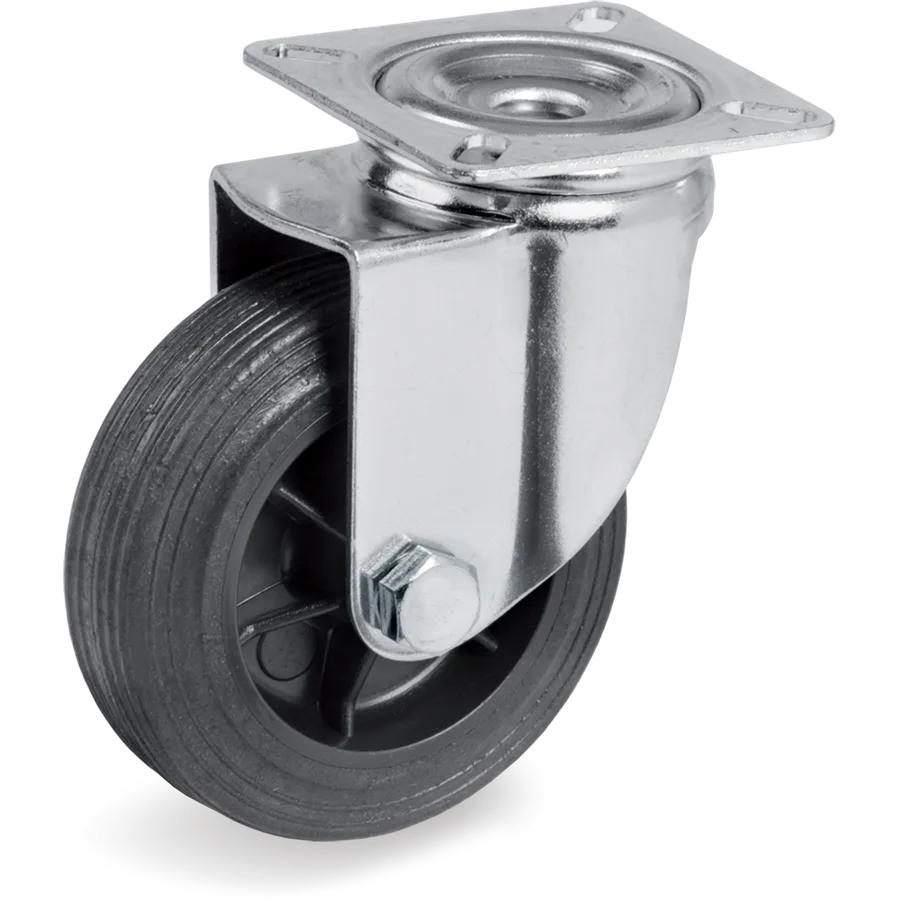

Tellure Rôta 514411 – Thermoplastic rubber swivel castor Ø80×26 mm514411Representative image of the family

Drawing dimensions

DDiameter
80 mm
FWidth
26 mm
HOverall height
102 mm
A×BTop plate (outside)
60 × 60 mm
AA×BBBolt hole spacing
45 × 45 mm
EEBolt hole diameter
6 mm
ESwivel offset
26 mm

Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

Tellure RôtaCode 514411Series 51

Thermoplastic rubber swivel castor Ø80×26 mm

Injected thermoplastic rubber (TPR) wheels, polypropylene centre

Tellure description: 51 80X26 CB SRP S3.0

Diameter (D)
Ø 80mm
Width (F)
26mm
Load capacity
30daN
Tread
Thermoplastic rubber

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)

Questions about this article?

926 550 642Contact →

Genuine Tellure Rôta product · Made in Italy

Technical specifications

Wheel

Code
514411
Series
Tellure Rôta 51
Tread
Thermoplastic rubber
Diameter (D)
80 mm
Width (F)
26 mm
Static load
30 daN
Bearing
Plain bore

Bracket

Bracket type
Swivel
Overall height (H)
102 mm
Top plate (A × B)
60 × 60 mm
Bolt hole spacing (AA × BB)
45 × 45 mm
Fitting
Top plate
Bracket material
Galvanised steel
Brake
No

Other sizes in this family

Injected thermoplastic rubber (TPR) wheels, polypropylene centre

2 articles

CodeØ × FLoad capacityBearingBrakeTellure description
514411Ø80×26 mm30 daNC/BNoThis article
514412Ø100×30 mm35 daNC/BNo51 100X30 CB SRP S3.0
