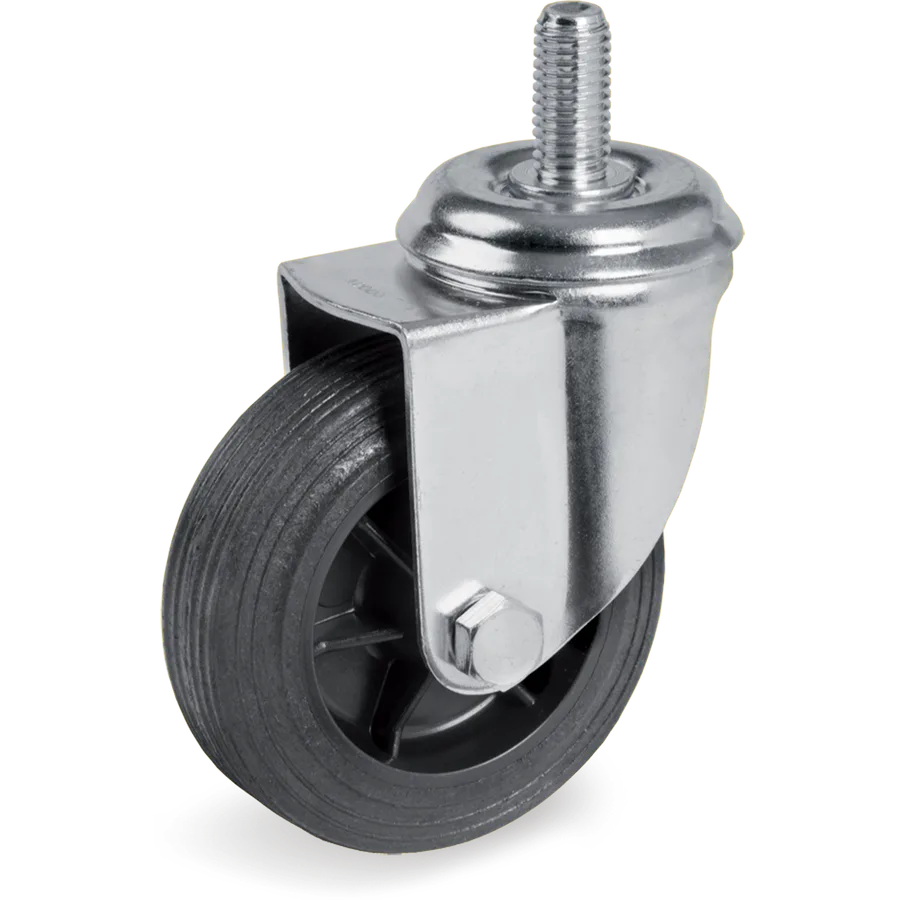

514411Series 51Thermoplastic rubber swivel castor Ø80×26 mm
Injected thermoplastic rubber (TPR) wheels, polypropylene centre
Load capacity: 30 daN
516801Representative image of the familyDrawing dimensions
- DDiameter
- 80 mm
- FWidth
- 26 mm
- HOverall height
- 103 mm
- GPlate diameter
- 41 mm
- TNut thread
- M12
- FSBolt length
- 25 mm
- ESwivel offset
- 28 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
Thermoplastic rubber swivel castor Ø80×26 mm
Injected thermoplastic rubber (TPR) wheels, polypropylene centre
Tellure description: 51 80X26 CB SRC/FIL M12X25
- Diameter (D)
- Ø 80mm
- Width (F)
- 26mm
- Load capacity
- 30daN
- Tread
- Thermoplastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 516801
- Series
- Tellure Rôta 51
- Tread
- Thermoplastic rubber
- Diameter (D)
- 80 mm
- Width (F)
- 26 mm
- Static load
- 30 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 103 mm
- Fitting
- Stem
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Injected thermoplastic rubber (TPR) wheels, polypropylene centre
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 516801 | Ø80×26 mm | 30 daN | C/B | No | This article |
| 516802 | Ø100×30 mm | 35 daN | C/B | No | 51 100X30 CB SRC/FIL M12X25 |
