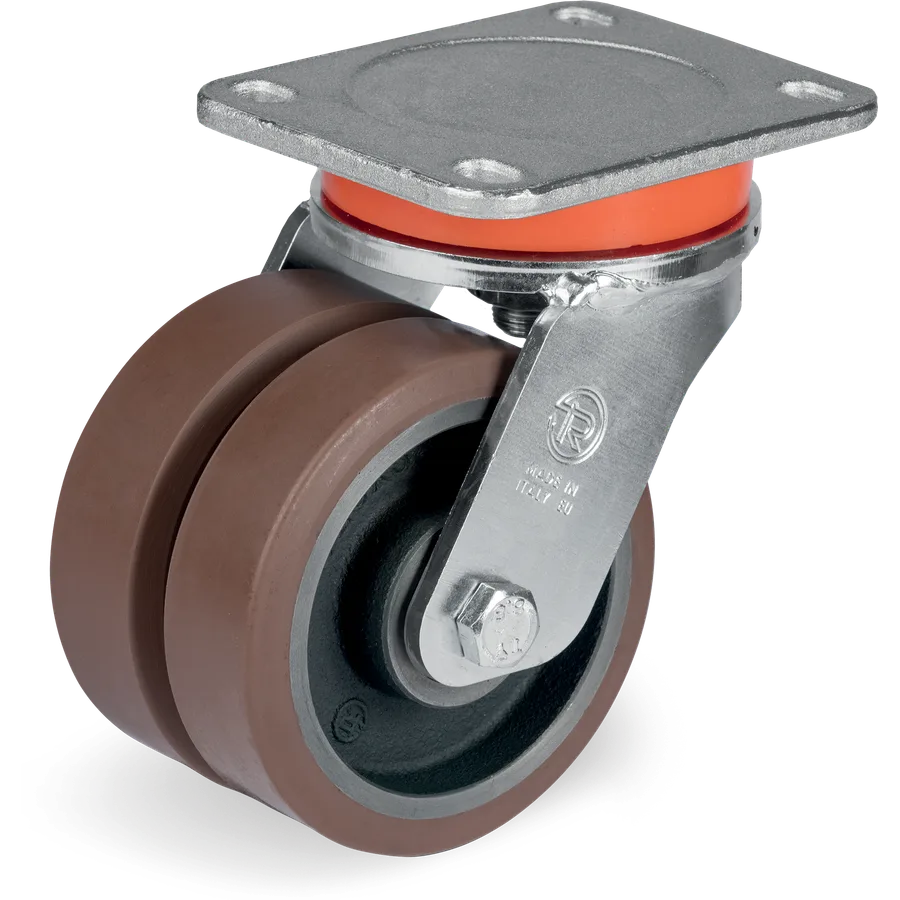

588063Representative image of the familyTR-PowerHigh polyurethane swivel castor Ø125 mm
Ruedas de poliuretano TR-PowerHigh, núcleo de hierro fundido mecánico, soporte giratorio EEG MHD
Tellure description: 58GH 125X38+38 CC SRP/EEGMHD R2.1
- Diameter (D)
- Ø 125mm
- Load at 4 km/h
- 1,000daN
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 588063
- Series
- Tellure Rôta 58GH
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 125 mm
- Load at 4 km/h
- 1,000 daN
- Load at 6 km/h
- 880 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de poliuretano TR-PowerHigh, núcleo de hierro fundido mecánico, soporte giratorio EEG MHD
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 588062 | Ø100 mm | 900 daN | C/C 2Z | No | 58GH 100X38+38 CC SRP/EEGMHD R2.1 |
| 588063 | Ø125 mm | 1,000 daN | C/C 2Z | No | This article |
