638063Series 63GH
648063Representative image of the familyDrawing dimensions
- DDiameter
- 125 mm
- FWidth
- 38 + 38 mm
- HOverall height
- 170 mm
- A×BTop plate (outside)
- 135 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 55 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

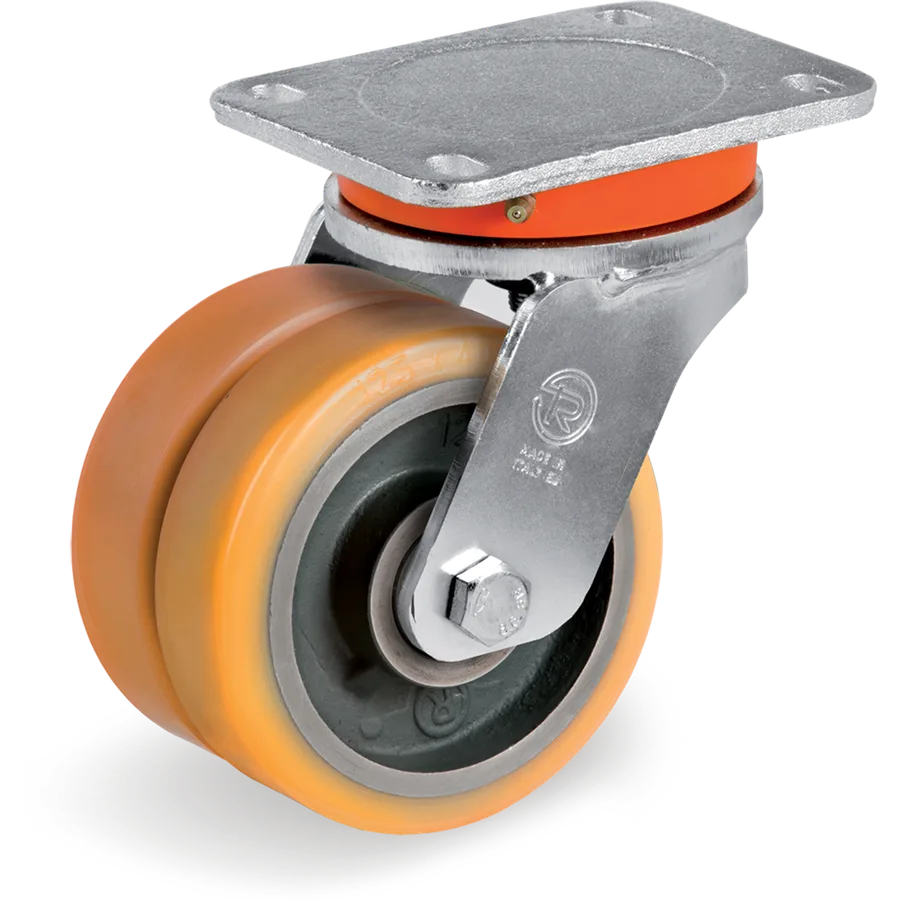

TR polyurethane swivel castor Ø125 mm
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
Tellure description: 64 125X38+38 CC SRP/EEGMHD R2.1
- Diameter (D)
- Ø 125mm
- Load at 4 km/h
- 900daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 648063
- Series
- Tellure Rôta 64
- Tread
- TR polyurethane
- Diameter (D)
- 125 mm
- Load at 4 km/h
- 900 daN
- Load at 6 km/h
- 720 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 170 mm
- Top plate (A × B)
- 135 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 648062 | Ø100 mm | 700 daN | C/C 2Z | No | 64 100X38+38 CC SRP/EEGMHD R2.1 |
| 648063 | Ø125 mm | 900 daN | C/C 2Z | No | This article |
