638174Series 63GH

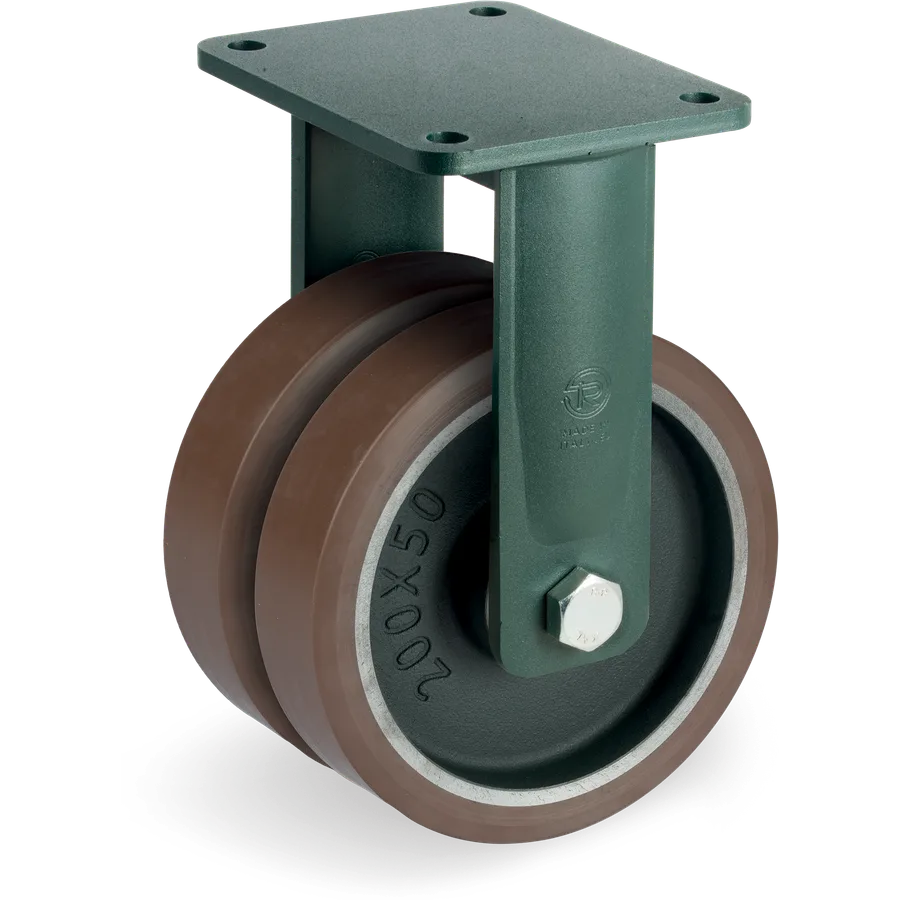

588174Representative image of the familyDrawing dimensions
- DDiameter
- 150 mm
- FWidth
- 50 + 50 mm
- HOverall height
- 223 mm
- A×BTop plate (outside)
- 175 × 140 mm
- AA×BBBolt hole spacing
- 140 × 105 mm
- EEBolt hole diameter
- 14 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
TR-PowerHigh polyurethane fixed castor Ø150 mm
TR-PowerHigh polyurethane wheels and drive wheels, cast iron centre
Tellure description: 58GH 150X50+50 CC SF/EEGHD R3.0
- Diameter (D)
- Ø 150mm
- Load at 4 km/h
- 1,600daN
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 588174
- Series
- Tellure Rôta 58GH
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 150 mm
- Load at 4 km/h
- 1,600 daN
- Load at 6 km/h
- 1,440 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 223 mm
- Top plate (A × B)
- 175 × 140 mm
- Bolt hole spacing (AA × BB)
- 140 × 105 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- No
