638174Series 63GH
648174Representative image of the familyDrawing dimensions
- DDiameter
- 150 mm
- FWidth
- 50 + 50 mm
- HOverall height
- 223 mm
- A×BTop plate (outside)
- 175 × 140 mm
- AA×BBBolt hole spacing
- 140 × 105 mm
- EEBolt hole diameter
- 14 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

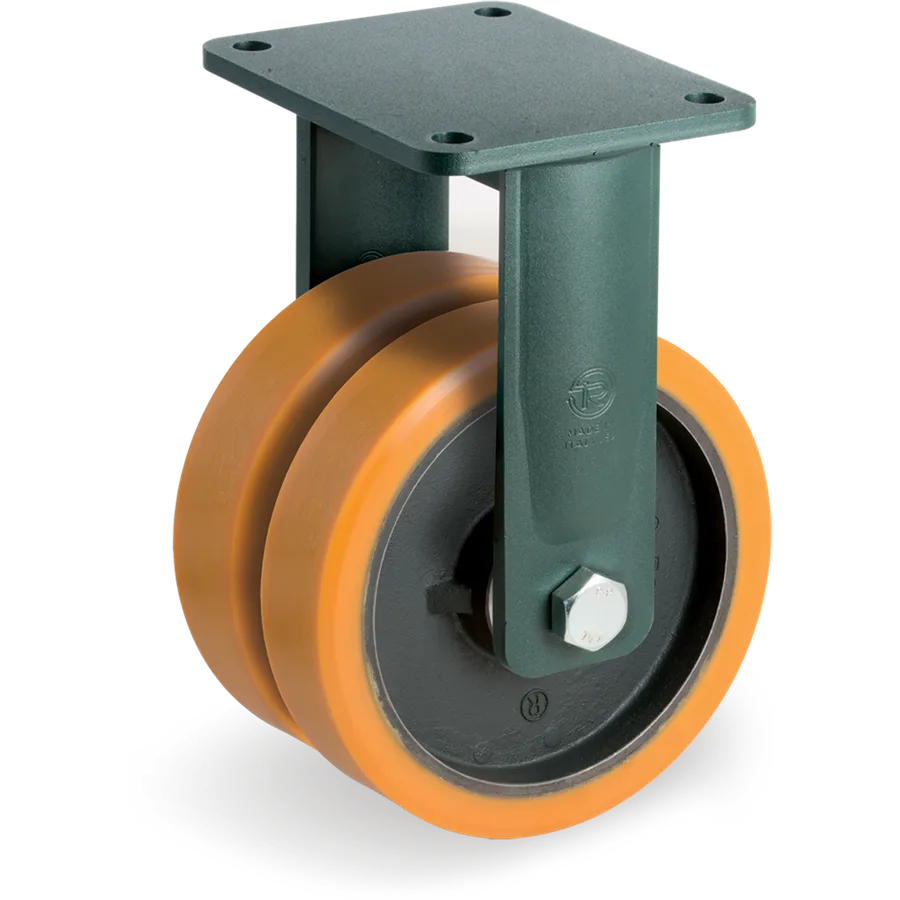

TR polyurethane fixed castor Ø150 mm
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
Tellure description: 64 150X50+50 CC SF/EEGHD R3.0
- Diameter (D)
- Ø 150mm
- Load at 4 km/h
- 1,500daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 648174
- Series
- Tellure Rôta 64
- Tread
- TR polyurethane
- Diameter (D)
- 150 mm
- Load at 4 km/h
- 1,500 daN
- Load at 6 km/h
- 1,200 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 223 mm
- Top plate (A × B)
- 175 × 140 mm
- Bolt hole spacing (AA × BB)
- 140 × 105 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- No
Other sizes in this family
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 648172 | Ø125 mm | 1,100 daN | C/C 2Z | No | 64 125X50+50 CC SF/EEGHD R3.0 |
| 648174 | Ø150 mm | 1,500 daN | C/C 2Z | No | This article |
| 648184 | Ø160 mm | 1,500 daN | C/C 2Z | No | 64 160X50+50 CC SF/EEGHD R3.0 |
| 648166 | Ø200 mm | 1,600 daN | C/C 2Z | No | 64 200X50+50 CC SF/EEGHD R3.0 |
| 648176 | Ø200 mm | 2,000 daN | C/C 2Z | No | 64 200X50+50 CC SF/EEGHD R4.0 |
