628906Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 78 mm
- HOverall height
- 275 mm
- A×BTop plate (outside)
- 175 × 140 mm
- AA×BBBolt hole spacing
- 140 × 105 mm
- EEBolt hole diameter
- 14.5 mm
- ESwivel offset
- 65 mm
- OBrake swing radius
- 166 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

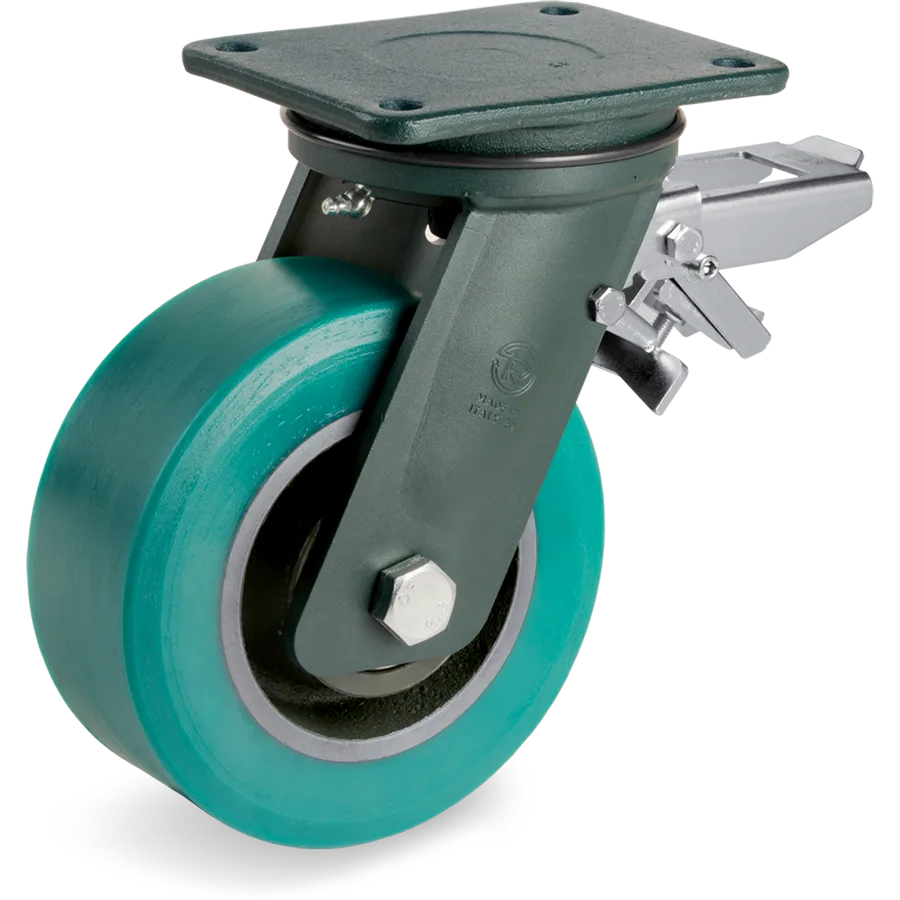

TR-Roll polyurethane swivel castor Ø200×78 mm with brake
TR-Roll polyurethane wheels and drive wheels, cast iron centre
Tellure description: 62GH 200X78 CC SRP/EEHD+FP R3.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 78mm
- Load at 4 km/h
- 900daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 628906
- Series
- Tellure Rôta 62GH
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 78 mm
- Load at 4 km/h
- 900 daN
- Load at 6 km/h
- 900 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 275 mm
- Top plate (A × B)
- 175 × 140 mm
- Bolt hole spacing (AA × BB)
- 140 × 105 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
TR-Roll polyurethane wheels and drive wheels, cast iron centre
4 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 628906 | Ø200×78 mm | 900 daN | C/C 2Z | Yes | This article |
| 628908 | Ø250×78 mm | 1,200 daN | C/C 2Z | Yes | 62GH 250X78 CC SRP/EEHD+FP R3.0 |
| 628908D4 | Ø250×80 mm | 1,200 daN | C/C 2Z | Yes | 62GH 250X80 C/C SRP/EE HD FRENO PTR ROLL 4 INTAGLI |
| 628918 | Ø300×78 mm | 1,400 daN | C/C 2Z | Yes | 62GH 300X78 CC SRP/EEHD+FP R3.0 |
