638776Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 50 + 50 mm
- HOverall height
- 285 mm
- A×BTop plate (outside)
- 200 × 160 mm
- AA×BBBolt hole spacing
- 160 × 120 mm
- EEBolt hole diameter
- 17 mm
- ESwivel offset
- 65 mm
- OBrake swing radius
- 164 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

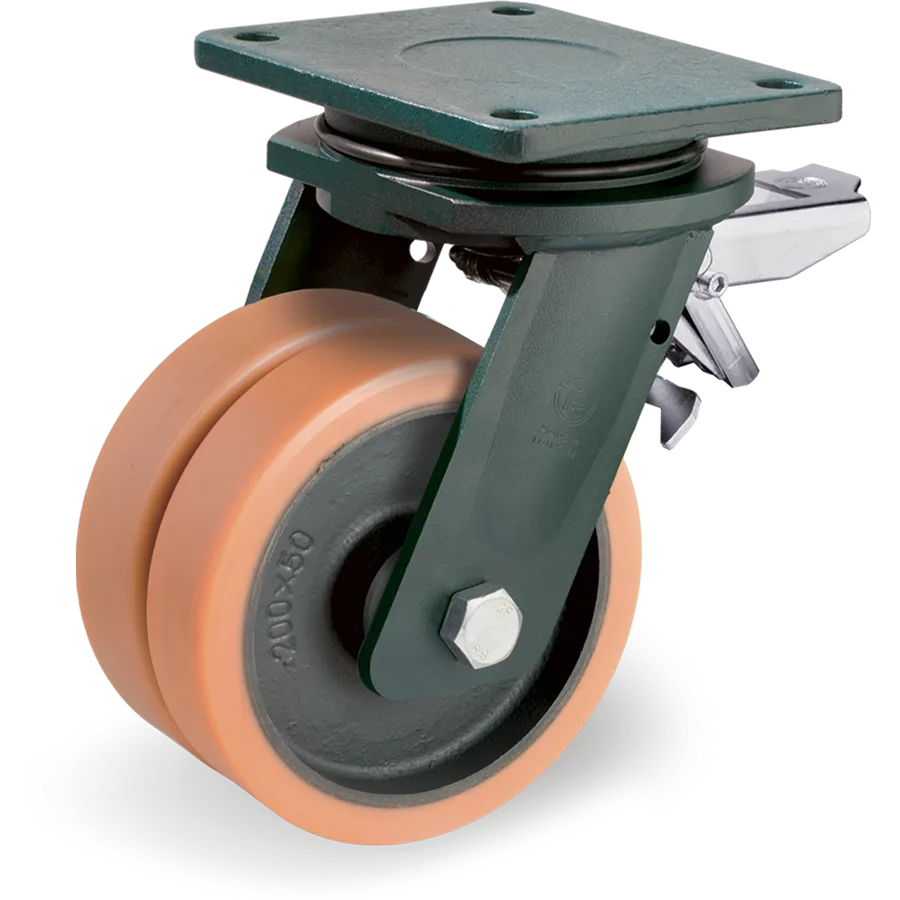

Vulkollan® swivel castor Ø200 mm with brake
Vulkollan® wheels, cast iron centre
Tellure description: 63GH 200X50+50 CC SRP/EEGHD+FP R4.0
- Diameter (D)
- Ø 200mm
- Load at 4 km/h
- 2,000daN
- Tread
- Vulkollan®
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 638776
- Series
- Tellure Rôta 63GH
- Tread
- Vulkollan®
- Diameter (D)
- 200 mm
- Load at 4 km/h
- 2,000 daN
- Load at 6 km/h
- 1,600 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 285 mm
- Top plate (A × B)
- 200 × 160 mm
- Bolt hole spacing (AA × BB)
- 160 × 120 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
Vulkollan® wheels, cast iron centre
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 638772 | Ø125 mm | 1,200 daN | C/C 2Z | Yes | 63GH 125X50+50 CC SRP/EEGHD+FP R3.0 |
| 638774 | Ø150 mm | 1,500 daN | C/C 2Z | Yes | 63GH 150X50+50 CC SRP/EEGHD+FP R3.0 |
| 638784 | Ø160 mm | 1,500 daN | C/C 2Z | Yes | 63GH 160X50+50 CC SRP/EEGHD+FP R3.0 |
| 638766 | Ø200 mm | 1,600 daN | C/C 2Z | Yes | 63GH 200X50+50 CC SRP/EEGHD+FP R3.0 |
| 638776 | Ø200 mm | 2,000 daN | C/C 2Z | Yes | This article |
