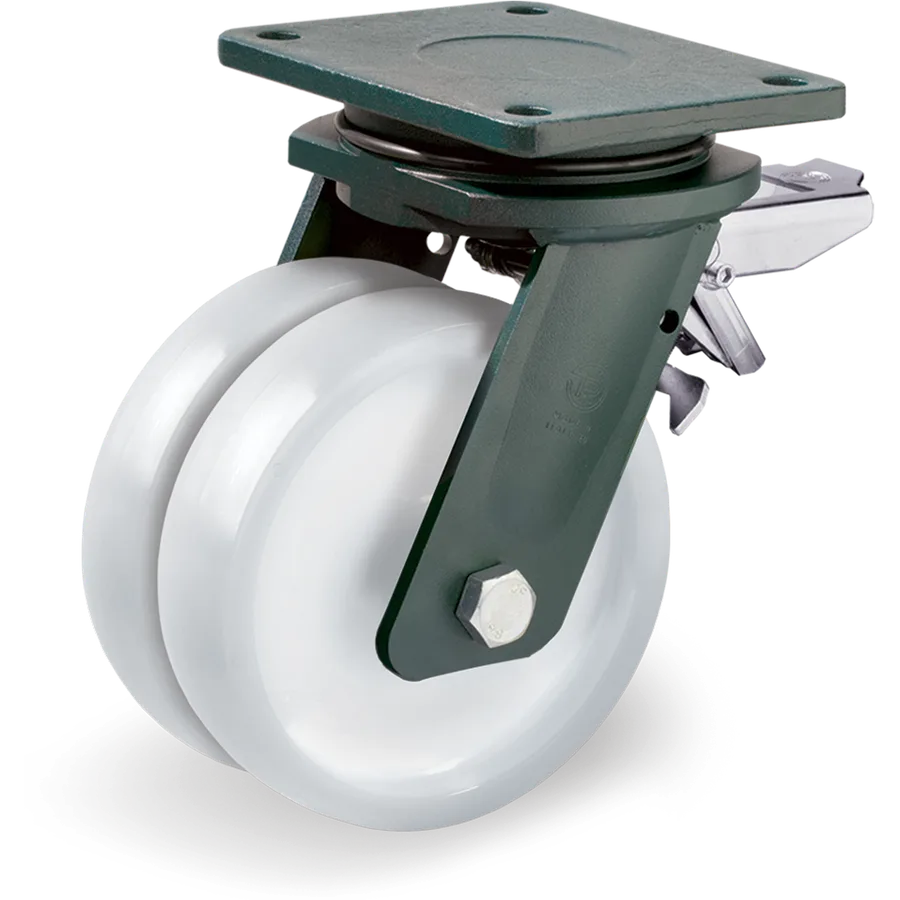

Tellure Rôta 682999 – Polyamide 6 swivel castor Ø200 mm with brake682999Representative image of the family
Tellure RôtaCode 682999Series 68EP

Polyamide 6 swivel castor Ø200 mm with brake

Ruedas monobloque en poliamida 6 para grandes cargas, soporte giratorio pletina EEG HD, freno trasero

Tellure description: 68EP 200X50+50 CC SRP/EEGHD+FP R4.0

Diameter (D)
Ø 200mm
Load at 4 km/h
2,000daN
Tread
Polyamide 6

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)

Questions about this article?

926 550 642Contact →

Genuine Tellure Rôta product · Made in Italy

Technical specifications

Wheel

Code
682999
Series
Tellure Rôta 68EP
Tread
Polyamide 6
Diameter (D)
200 mm
Load at 4 km/h
2,000 daN
Bearing
Ball bearings 2Z

Bracket

Bracket type
Swivel
Fitting
Top plate
Bracket material
Forged steel
Brake
Yes
Brake type
Rear brake

Other sizes in this family

Ruedas monobloque en poliamida 6 para grandes cargas, soporte giratorio pletina EEG HD, freno trasero

4 articles

CodeØ × FLoad capacityBearingBrakeTellure description
688772Ø125 mm1,300 daNC/C 2ZYes68 125X45+45 CC SRP/EEGHD+FP R3.0
688774Ø150 mm1,500 daNC/C 2ZYes68 150X45+45 CC SRP/EEGHD+FP R3.0
682999Ø200 mm2,000 daNC/C 2ZYesThis article
688766Ø200 mm1,800 daNC/C 2ZYes68 200X50+50 CC SRP/EEGHD+FP R4.0
