638774Series 63GHVulkollan® swivel castor Ø150 mm with brake
Vulkollan® wheels, cast iron centre
Load capacity: 1,500 daN
688774Representative image of the familyDrawing dimensions
- DDiameter
- 150 mm
- FWidth
- 45 + 45 mm
- HOverall height
- 223 mm
- A×BTop plate (outside)
- 175 × 140 mm
- AA×BBBolt hole spacing
- 140 × 105 mm
- EEBolt hole diameter
- 14 mm
- ESwivel offset
- 50 mm
- OBrake swing radius
- 164 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

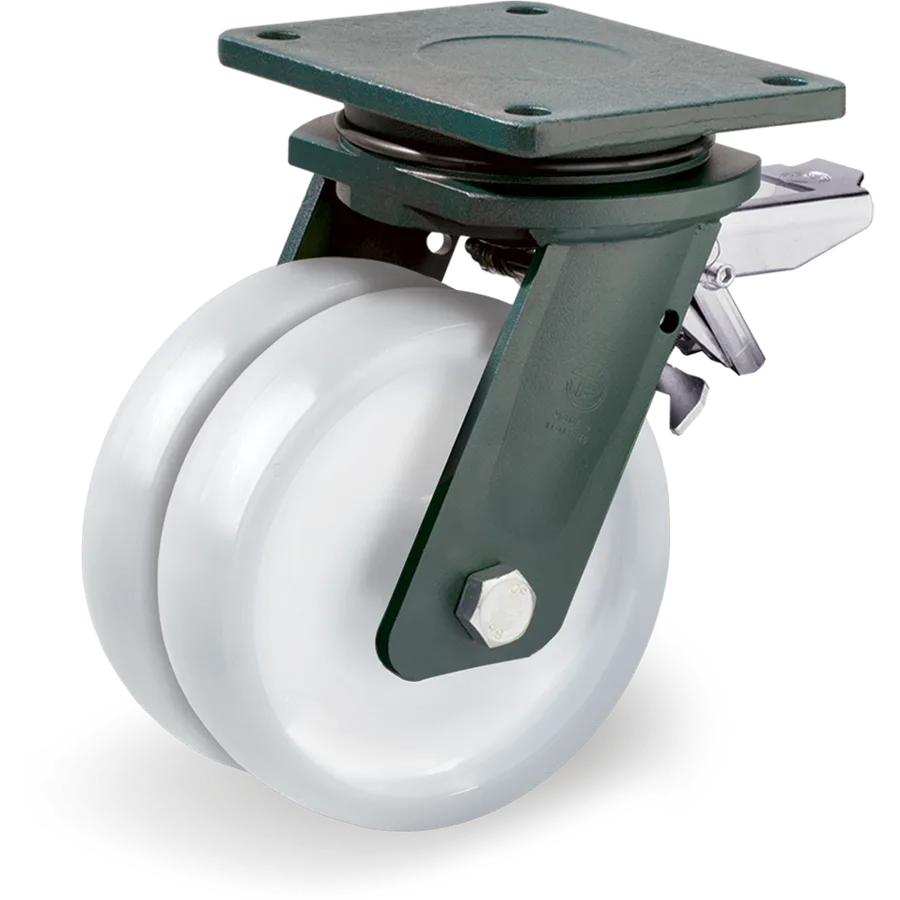

Polyamide 6 swivel castor Ø150 mm with brake
One-piece polyamide 6 wheels
Tellure description: 68 150X45+45 CC SRP/EEGHD+FP R3.0
- Diameter (D)
- Ø 150mm
- Load at 4 km/h
- 1,500daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 688774
- Series
- Tellure Rôta 68
- Tread
- Polyamide 6
- Diameter (D)
- 150 mm
- Load at 4 km/h
- 1,500 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 223 mm
- Top plate (A × B)
- 175 × 140 mm
- Bolt hole spacing (AA × BB)
- 140 × 105 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- Yes
- Brake type
- Rear brake
