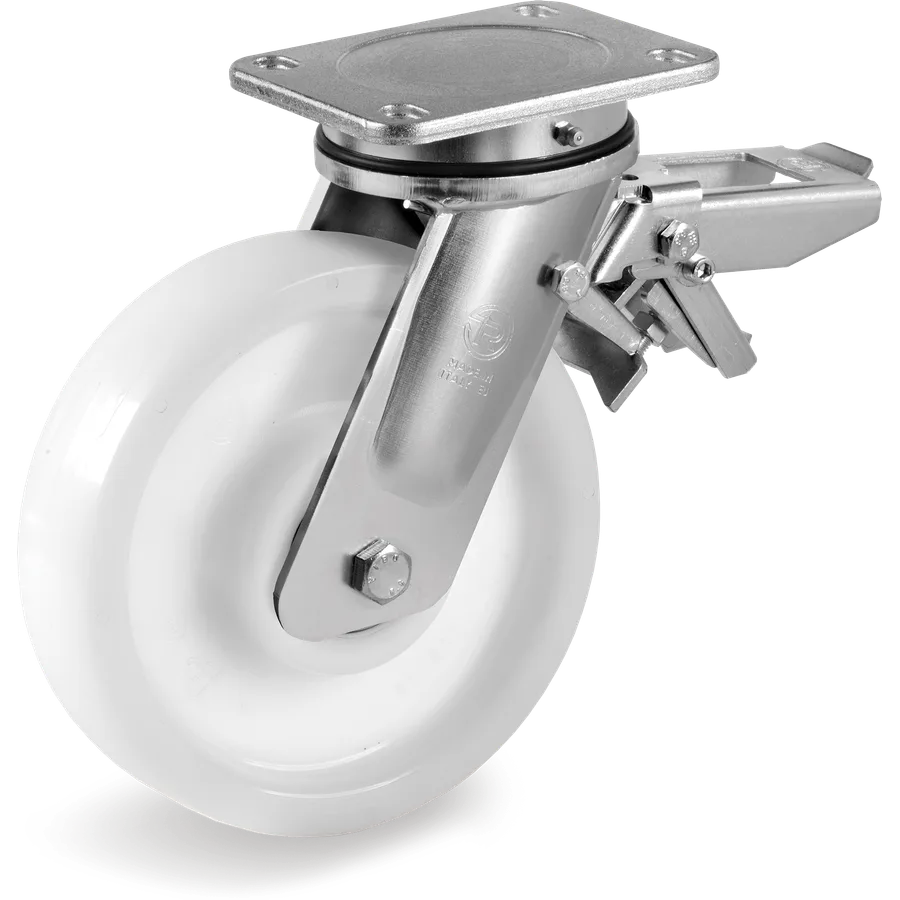

682986Representative image of the familyPolyamide 6 swivel castor Ø200×50 mm with brake
Ruedas monobloque en poliamida 6 para grandes cargas, soporte giratorio pletina EE MHD, freno trasero regulable
Tellure description: 68EP 200X50 CC SRP/EEMHD+FP R2.1
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 1,500daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 682986
- Series
- Tellure Rôta 68EP
- Tread
- Polyamide 6
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 1,500 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
Ruedas monobloque en poliamida 6 para grandes cargas, soporte giratorio pletina EE MHD, freno trasero regulable
19 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 688703 | Ø125×45 mm | 650 daN | C/B | Yes | 68P 125X45 CB SRP/EEMHD+FP R2.1 |
| 688703B2 | Ø125×45 mm | 650 daN | C/B | Yes | 68P 125X45 CB SRP/EE 125LEGGERO CON FRENO 2 INTAGLI |
| 688703B4 | Ø125×45 mm | 650 daN | C/B | Yes | 68P 125X45 CB SRP/EE 125LEGGERO CON FRENO 4 INTAGLI |
| 689803 | Ø125×45 mm | 650 daN | C/C 2Z | Yes | 68P 125X45 CC SRP/EEMHD+FP R2.1 |
| 689803B2 | Ø125×45 mm | 650 daN | C/C 2Z | Yes | 68P 125X45 CC SRP/EE 125LEGGERO CON FRENO 2 INTAGLI |
| 689803B4 | Ø125×45 mm | 650 daN | C/C 2Z | Yes | 68P 125X45 CC SRP/EE 125LEGGERO CON FRENO 4 INTAGLI |
| 688704 | Ø150×45 mm | 750 daN | C/B | Yes | 68P 150X45 CB SRP/EEMHD+FP R2.1 |
| 688704B2 | Ø150×45 mm | 750 daN | C/B | Yes | 68P 150X45 CB SRP/EE 150LEGGERO CON FRENO 2 INTAGLI |
| 688704B4 | Ø150×45 mm | 750 daN | C/B | Yes | 68P 150X45 CB SRP/EE 150LEGGERO CON FRENO 4 INATGLI |
| 689804 | Ø150×45 mm | 750 daN | C/C 2Z | Yes | 68P 150X45 CC SRP/EEMHD+FP R2.1 |
| 689804B2 | Ø150×45 mm | 750 daN | C/C 2Z | Yes | 68P 150X45 CC SRP/EE 150LEGGERO CON FRENO 2 INTAGLI |
| 689804B4 | Ø150×45 mm | 750 daN | C/C 2Z | Yes | 68P 150X45 CC SRP/EE 150LEGGERO CON FRENO 4 INTAGLI |
| 682986 | Ø200×50 mm | 1,500 daN | C/C 2Z | Yes | This article |
| 688706 | Ø200×50 mm | 900 daN | C/B | Yes | 68P 200X50 CB SRP/EEMHD+FP R2.1 |
| 688706B2 | Ø200×50 mm | 900 daN | C/B | Yes | 68P 200X50 CB SRP/EE 200LEGGERO CON FRENO 2 INTAGLI |
| 688706B4 | Ø200×50 mm | 900 daN | C/B | Yes | 68P 200X50 CB SRP/EE 200LEGGERO CON FRENO 4 INTAGLI |
| 689806 | Ø200×50 mm | 900 daN | C/C 2Z | Yes | 68P 200X50 CC SRP/EEMHD+FP R2.1 |
| 689806B2 | Ø200×50 mm | 900 daN | C/C 2Z | Yes | 68P 200X50 CC SRP/EE200 LEGGERO CON FRENO 2 INTAGLI |
| 689806B4 | Ø200×50 mm | 900 daN | C/C 2Z | Yes | 68P 200X50 CC SRP/EE200 LEGGERO CON FRENO 4 INTAGLI |
